Power ten P63C-101000 power supply 10V, 1000A

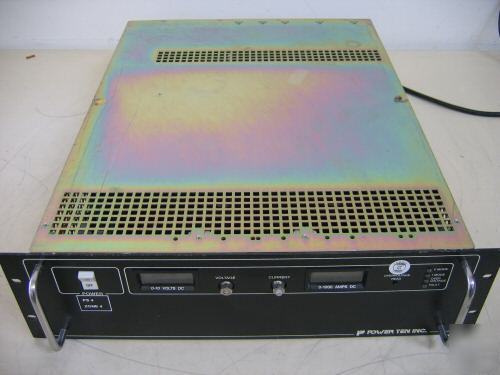

Power Ten P63C-101000 High Power DC Power Supply, 10V, 1000A, 10kW
* Description: Power Ten supplies, including the Power Ten P63C-101000 (P63 series) are the first choice for semiconductor burn-in systems worldwide and are providing solutions to high power DC voltage requirements in many other diverse applications. These include:
* All power supply designs from Power Ten employ the most reliable, effi cient and cost-effective switching technology – including pulse width modulation (PWM) and zero crossing topology to achieve both high efficiency and high-density packaging. Highlights include; 3-Phase Input Power, Low Peak-to-Peak Ripple & Noise, CE & TUV, Optional IEEE 488.2 and RS 232 Remote Programming with SCPI Protocol Other features and specifications include:
* Output: 10V, 1000A, 50mV Ouput P-P Ripple

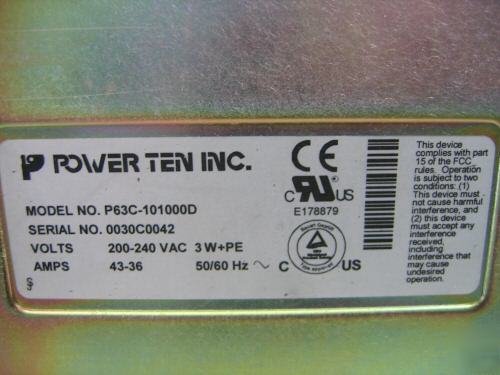

* Input Voltage: 190-253 VAC, 47-63 Hz
* Input Current @ 208 VAC (Typical): At 10.0 kW Output: 41 A (Operates from Delta or Wye Source)

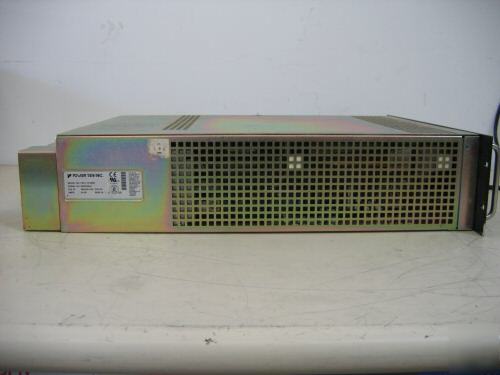

* Dimensions: 19†(W) X 5.25†(H) X 22†(D)

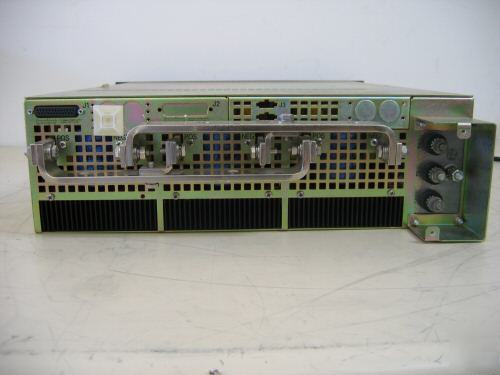

* AC Input Interface: 3 wire + GND (#10-32 threaded studs) (208 VAC)

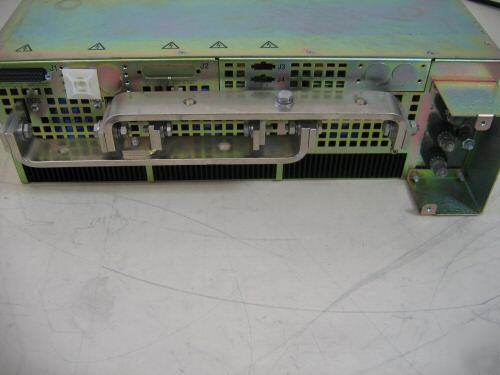

* DC Output Interface: Bus bars with 0.390†interface holes for output ≤50 VDC.
* Control/Monitor Interface: DB 25-pin female connector
* Regulation (Line or Load)
Voltage: 0.1% of maximum rated output
* Current: 0.5% of maximum rated output
* A 30% current step load will recover to within ±2% of set voltage within 10 msec.
* ±0.05% of set point per 8 hours after 30 minutes warm-up at fi xed line, load and temperature.
* 0.02%/°C of rated output voltage
* 0.03%/°C of rated output current
* 0 to +50° C, No derating

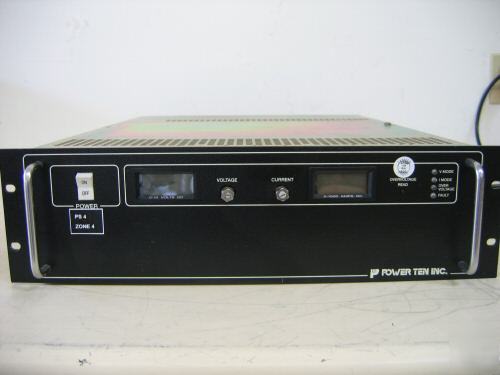

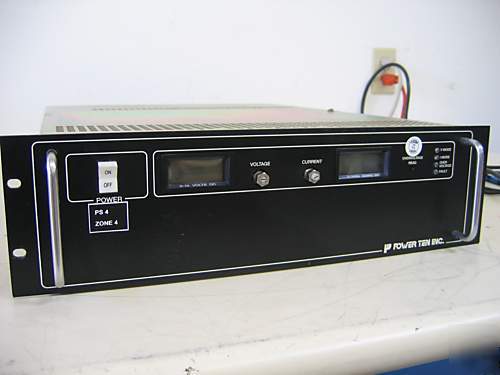

* On/Off switch, DC volts adjust, DC amps adjust, OVP preset adjust (limit set)

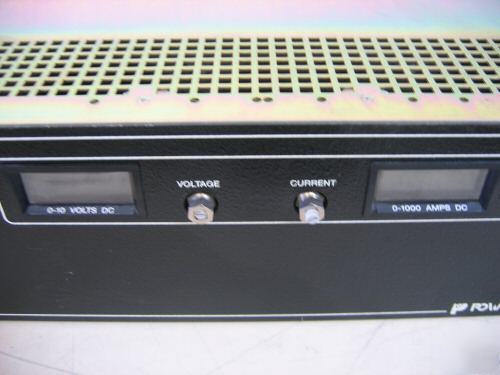

* LCD DC voltmeter, ammeter and OVP limit set. LED indicators for voltage mode, current mode. OVP fault and fault
* Over Voltage, Current limit Fold back, Over Temperature, Brown Out, Turn On Surge Limit, Slow Start
* Remote Control/Monitor (Rear Panel)
* On/Off control via contact closure, 6-120 VDC, TTL or CMOS switch, output voltage and current monitor, OVP limit set, summary fault status on P60 Series.
* Voltage (0 to 100%) Current (0 to 100%)
* Resistive: 0-5K ohms 0-5K ohms
Voltage: 0-5 VDC or 10 VDC 0-5 VDC or 10 VDC
* Optional IEEE 488.2 and RS 232 Programming with SCPI protocol
* Terminals provided to sense output voltage at load
* Master/Slave, Series, Parallel
* Working Condition: Presumed Good but Untested
* Warranty: Rest assured that your purchase includes a 3-day DOA Guarantee. If the item is DOA, you will need to notify us within 3-days of receipt. Item(s) must be returned in the same condition as received within 7 days of receipt. (See below for further details).
We strongly recommend that you properly pack and insure the package against loss or damage. It is ultimately your responsibility that your returned product arrives at our location within the allotted return time frame in the same condition it was sent.
