Hp agilent 5315A universal counter (100 mhz)
HP Agilent 5315A Universal Counter
* A used HP Agilent 5315A Universal Counter 100Mhz
* The counter looks in great shape and in working condition.

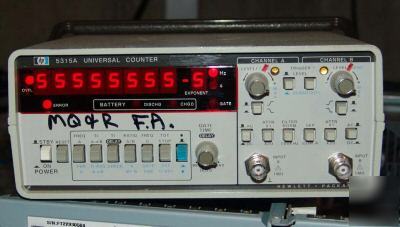

* No accessories, picture is the actual counter
* Description: The HP 5315A is a portable bench version of the 5316B high-performance universal counter. Unique counting circuitry gives the best of both reciprocal and conventional frequency counting. Full frequency range (to 100 MHz) on both input channels provides frequency, period, ratio A/B, and totalize A by B measurements.The 5315A is suited for maintaining and calibrating all types of electronic equipment in the field.
* Exceptional resolution at both low and high frequencies.
* Three time-interval modes solve more problems.
* Flexible signal conditioning optimized for both frequency and time interval measurements. Selectable gate time from 60 ms to 10 s.
* 100 MHz A and B input channels, Optional 1 GHz C channel. Below 10 MHz, the counter measures the input signal period, then computes and displays the reciprocal frequency with 7 digits of resolution in one second for signals as low as 0.1 Hz. Above 10 MHz, the counter automatically performs as a conventional counter.
* 100 ns single-shot time-interval resolution. Time-interval averaging boosts performance to 10 ps resolution. A time-interval delay ignores spurious signals that would normally cause the counter to trigger.
* Flexible Signal Conditioning
* Choose AC or DC coupling, a sensitivity control (variable attenuator), and a switchable low-pass filter. Both channels have trigger level controls with easy setting.
10 Days Against DOA Warranty
* Personal/Company check (Note: Personal/company check will be held 5-8 business days for clearance.)
* 8.250% sales tax will be applied if you are a California resident.
* Returns are allowed only within the 10 days from the date units are received for the money back or replacement.
* Email: ****@aol.com
* Business Hour: Monday - Friday 9:00am - 5:00pm PST
