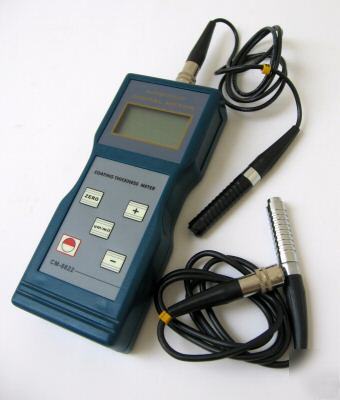

Digital paint coating thickness gauge meter cm-8822
Item : Digital Paint Coating Thickness Gauge (One year full warranty)
* It meets the standards of both ISO2178 and ISO2316. Suitable for the laboratory and for use in harsh field conditions
* The F probes measure the thickness of non-magnetic materials such as paint, plastic procelain enamel, copper, zinc, aluminum, chrome etc. on magnetic materials such as iron, nickel and etc. It is often used to measure the thickness of galvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer, copper tile, aluminum tile, some alloy tile, paper etc.
* The NF probes measure the thickness of non-magnetic coatings on non-magnetic metals. It is used on anodizing, varnish, paint, enamel, plastic coatings, powder applied to aluminum, brass, non-magnetic stainless steel, etc.
* Used the exclusive Micro-computer LSI circuit and crystal time base to offer high accuracy measurement & fast measuring time.
* Wide measuring range and high resolution.
* Digital display gives exact reading with no guessing or errors
* The use of durable, long lasting components, including a strong, light weight ABS plastic housing assures maintenance free
* Shaped to fit comfortably for right-handed or left handed person
* LCD display : 4 digits, 10mm LCD
* Coating thickness range : 0 - 1000 um / 0 - 40 mil
* Resolution : 0.1 um (0 - 99.9 um) ; 1 um (over 100um)
* Accuracy : ± 1 - 3% n or 2.5 um (whichever is greater)
* Power supply : 4 x 1.5V AA (UM3) batteries (not included)
* Operation Temperature : 0 - 50°C
* Operation Humidity : below 80%
* Unit size : 161 x 69 x 32 mm (6.3 x 2.7 x 1.2 inch)
* Unit weight : approx. 260g (after batteries inserted)

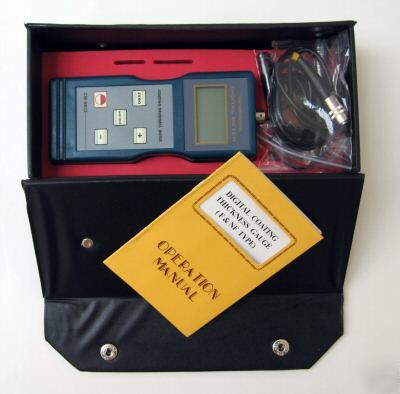

* 1pc coating thickness gauge (main unit)
* 1pc black storage case with handle
* Packed into the full set black storage case with handle
* Then packed into standard factory box
