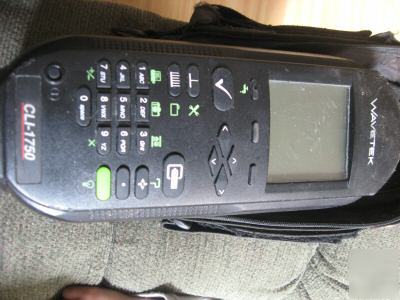

Wavetek cli 1750 digital cable meter no
· Complete solution for installers eliminating the need for multiple meters or testers.
· Combination signal level meter, leakage meter, and home wiring tester.
· Easy-to-use, portable, and economical.
· Comprehensive tests to verify the quality of an installation.
· Icon-based user interface for ease of operation in all languages.
· Signal levels are checked to verify proper levels arriving at the tap and at the house.
· Frequency response is measured to verify proper losses and to uncover any roll-off or sharp changes in response.
· Frequency Domain Reflectometry test (FDR) reveals precise location of sources of reflections and degree of severity.
· Leakage test finds potential points of ingress, as the source may not be in operation while the installer is at the house.
· Signal Scan mode shows all channel levels at once.
· digiCheck(TM) digital signal average power measurement option.
· Frequency agile leakage detection and measurement.
· Pass/fail check ensures FCC compliance and reduces subscriber call-backs.
±0.75 dB Linearity @ 25°C (77°F)
Digital Average Power (optional) ± 2.0 dB (typical)
Scan Rate Approximately 6 carriers/second
Input Sensitivity (with HD-1 dipole or VMA-3 mag mount)
Video Detection From 1 µV with LT1000
CW Detection From 0.5 µV typical with LT1000
Measurement From 1.4 µV (115 to 140 MHz).
Range 0.5 to 2,000 µV (at input connector)
Measurement ±1.5 dB @ 25°C (77°F)
Find & Fix ±2.25 dB @ 25°C (77°F)
Frequency Range 115 to 140 MHz range (Video)
Accuracy 10 ppm @ 25°C (77°F);
Tagger modulation for leakage Modulation frequency
Temp. Range -10 to +50°C (14 to 122°F);
Water Resistance Meets or exceeds MIL-STD-810D
