> Tek 7A29 service/ops manual in 2 res + txtsrch + xtras
Tek 7A29 service/ops manual in 2 res + txtsrch + xtras

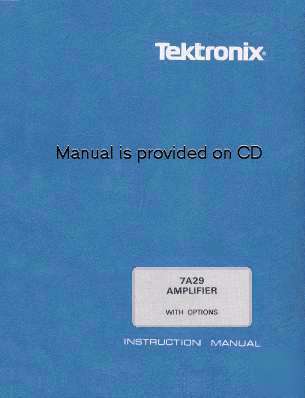

Tektronix 7A29 Service/Operations Manual (070-2320-00) in both Very High and in Standard Resolution PDF on CD
Why settle for just one resolution? You get them both!
For High Res page samples from this specific manual, click HERE.
(No need to "email for samples," so no need to worry about getting sold to a SPAM list!)
(Please read FAQ or "About Me" Page)
Also includes the Tektronix Semiconductor Parts Catalog plus an interesting and informative Articles PDF at no additional charge.
This manual covers the Tektronix 7A29 'Scope plugin. It is scanned from the original manufacturer's manual. The scans came out well, and all information available in the original manual (Tektronix part number 070-2320-00) is available here. Interesting observation: "The Marketer" is claiming "truly a reproduction grade scan" of 114 pages "in 600dpi" (including greyscale) in a 14 MB scan. Gee.. our 600 dpi scan of this (including greyscale) is 101 MB.. but (coincidence?) our "standard" or "bench res" scan of it is.. get this.. 14 MB in size!! Draw your own conclusions.
Two PDFs of the manual are provided, in two resolutions. One is:
Text with Drawings at 600dpi black and white
Schematics at 600dpi black and white
Text with photos at 600dpi grayscale with contrast adjusted
Schematics, board overlays that have color notes at 600dpi 256 colors.
This resolution looks nice, but for many purposes uses excessive resources. You can copy the large file to the hard drive in an attempt to achieve maximum performance, but having that be a necessity is certainly of no benefit to you. Therefore, although it's great to have this resolution for those times you need higher definition, we include a second scan in more normal resolutions for daily research and use on the bench.
The second scan is done in resolutions that vary depending on individual page content, but are never higher than needed to produce a useable quality, quickly navigable file that will do the job without consuming more time and resources than are needed.
On the CD you'll receive the large "very high resolution" file, plus the smaller, faster and for many situations more appropriate text-searchable version. Both the very high resolution and the "bench resolution" PDFs are bookmarked, hyperlinked, and have both the sequential plus the chapter-page numbering systems. ALL original manual pages are supplied. These manuals are complete and are scanned in the specified resolutions.
