Meister S2000 lathe mill dro digital readout +2 scales
widest range of Digital Readout and Linear Scales
Meister 2-Axes DRO Super2000 c/w 2 Pices of Linear Glass Scales
Suitable for lathe, press brake, mill and lathe-mill-drill machines
With Linear Glass Scales: 100 ~ 900 mm travel or measuring length.
Meister DRO is perfect for your Grizzly, SIEG, X3, SUPER X, Jet, Wabeco, Optimum, WEISS, ROMI, Colchester Bantam, etc....
We keep stock of all scales sizes. If you are not sure what you need please email to me for assistance.
This is a EMCO Maximat lathe >>
Included with the Super2OOO DRO are:
* Two (2) pieces of standard glass scales with travel up to 900 mm (4 to 36 inches).
(For inforamtion: add 5.0" or 128mm to get overall length of glass scale).
* Mounting swivel arm for the DRO display box and User's Manual.
* Original factory extruded aluminium coolant covers for the linear scales.
* One year warranty direct from factory.
We have the full range of standard scales with travel stroke of 100, 120, 150, 170, 200, 220, 250, 270, 300, 350, 370, 400, 420, 450, 500, 520, 600, 620, 650, 700, 750, 770, 800, 850, and 900 mm.
Factory also make scales with travel distance of 950, 1000, 1100, 1200, 1300, 1400, 1500, 1600, 1800, 2000, 2500 and 3000 mm.
We have supplied many DRO for these mill or lathe:
* BridgePort or any similar Taiwan-make or China-make mill
* M300 Harrison or M400 Harrison Lathe
* EMCO Maximat Super 11, EMCO Compact 8
* Birmingham Lathe, Colchester Student Lathe, Bantam
If your machine is not listed above, just send me an email right away.
Meister DRO can be used with your DRO such as Anilam, Acu-Rite, Fagor, Easson, Mitutoyo, ELBO, SINO, and JENIX.

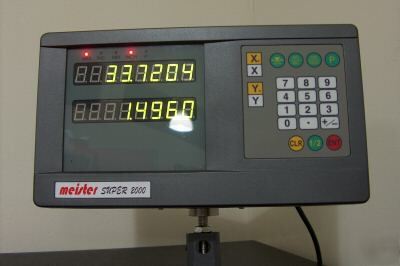

Functions of Super2000 Digital ReadOut:
Image hosted by Photobucket.com
* 1/2 - find half the value displayed.
* Preset Xand Y/Z dimensions
* Absolute/ Increment Co-ordinate Interchange .
* Recall - recall the memorized coordinate position.
* Mechanic Zero Position Memory: re-establish workpiece zero position after power failure.
* Bolt Hole Circle (P: Pitch Circle Diameter).
* Radius/Diameter (R/D) default setting for X-axis. Most suitable for lathe.
* Set scales direction (+/-)
* Response Speed: 60m/min (198.6feet/min)
* Resolution: 0.005mm/0.0002"
* Selectable resolution to match 10um, 5um or 1 um linear scales.
* Quantizing error: +/- 1 count Power Source: AC 110 - 220V, 50 - 60 Hz
* Temperature range: Operating 0 ~ 40 deg C; Storage: -20 ~ 70 deg C
* Display: 8-digits green color LED display
* Dimension: 270 x 150 x 100 mm (10.6 x 6.0 x 4.0 inches)
* Display swivel mounting arm and manual in English provided.
(The scale covers have been removed for the purpose of photo taking).
Thanks to John for sharing with us his photos of his Grizzly! A beautiful job!
* Grating pitch: 0.02mm (50LP/min)
* 3 metres long armoured cable.
* Accuracy: ±0.005 mm or 0.0002" (at 20 deg C).
* Every scale has ABS reference marks.
* Response Speed: 60m/min or 40ins/sec.
* Output Signal: Two square wave signals, TTL.
* Factory need about 2 days to process your order.
* Delivery by registered air parcel is about 7 ~ 9 days to Australia/New Zealand; 12 -17 days to other locations.
* I accept bank transfer and checks. Please allow time for check to be cleared.
* Return: I accept return for refund or exchange. Please read my "30 Days Return Policy" for more details.
