New phone cable tone generator tester tracer w/ probe

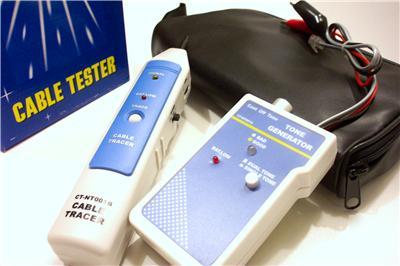

GenexToneTM Phone Cable Tone Generator Tester Tracer w/ Probe
* Quickly locate the termination point for any type of communcation cables.
* Active or Passive Testing Abilities
* Adjustable Volume on Single or Dual Tone Modes
* Easy to read bright LED indicators
* Probe works with any type of tone generator
* Small Sized in a great compact package
* Comes with the testing wires and testing plug shown above
* Plastic tip on tone generator to limit conductivity and ensure safety
* Both Tone Generator and Probe run on 9V batteries
* Comes in retail packaging with a great carrying case and user manual
Specifications for Tone Generator:
* Working Voltage: 9VDC +/- 15%
* Working Current: 10mA(when tone) 20mA(when cont)
* Output Wave Form: 10Vpp square-wave signals
* Single Audio Frequency: 900Hz
* Dual Audio Frequency: 900Hz and 1000Hz
* Size (mm): 115L x 62W x 27H
Specifications for Tone Probe:
* Working Voltage: 9VDC +/- 15%
* Working Current: 25mA (when "L") 80mA (when "SP" largest volume) 100mA (when "S&L" largest volume)
* Highest Receiving Sensitivity: greater than 30mv
* Maximum Output Volume: about 120dB
* Size (mm): 205L x 40W x 38H
Satisfaction Guarantee and Warranty:
The 30 day 100% satisfaction is a no questions asked 30 day return policy. We do not accept user damaged items though. The return covers your entire purchase price. The warranty covers all manufacturers defaults from 6 months after purchase date. Thanks. We hope to gain your business!
