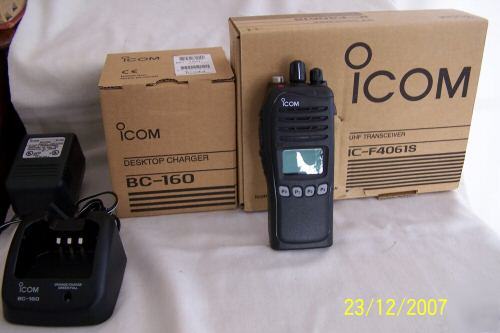

Icom f 4061 s uhf portable with bc-160 rapid chrgr
Analog, LTR® Conventional and Digital* All in One
Basic LTR®/Conventional mixed mode operation
The IC-F4061 series provides LTR®/conventional mixed mode operation. Group, selective (DTMF), and phone call are available in LTR® mode.
IP54/55 Dust-protection and splash, water jet resistance
Lithium-Ion battery pack Supplied 2000mAh Li-Ion battery pack, BP-232, provides 14 hours* of operating time. Icom’s rugged dual-rail guide securely locks the battery to the radio. * Typical operation Tx:Rx:Stand-by=5:5:90, power save on
Most popular signaling built-in
The IC-F4061 series has built-in 2-Tone, 5-Tone, CTCSS and DTCS signaling capabilities as standard for group communication or selective calling. 40 pairs of CTCSS/ DTCS memory channels are programmable independent of the operating channels. Also, the IC-F4061 series can decode ten 2-Tone codes or eight 5-Tone codes on a channel. When a matched tone is received, the following actions are programmable for each code.
Wide frequency range and large channel capacity
The IC-F4061 series covers a wide frequency range in one version UHF 400–470 MHz The 512 memory channel capacity with 128 zones allows you to divide and store a variety of flexible channel groupings. Memory channel selection can be made with a simple rotation of the rotary channel knob. Wide and narrow channel bandwidth (25/12.5kHz, 30/15kHz) is also programmable.
Using a large full dot-matrix LCD
(32 × 18 mm), the IC-F4061 series shows upper and lower case characters clearly. The display setting is selectable from 1 line, 12 characters or 2 lines 24 characters via programming. The bottom row shows assigned functions to the [P0] to [P3] buttons.
The IC-F4061 series employs a BTL amplifier that increases the audio output and the built-in audio compander provides clear, low noise communications.
Built-in inversion-type voice scrambler
The built-in inversion type voice scrambler provides secure conversation as standard. When a more secure system is required, the 32 code non-rolling-type voice scrambler UT-109R and 1020 code rolling type UT-110R are available as an option.
* 2 step reduced power setting
* Busy, repeater lockout functions
* Radio stun and kill functions disable a lost or stolen unit over the air
* Surveillance function temporarily turns off the LED backlight and beep sound
* Powerful 5W output both VHF and UHF and more...
* Flash CPU for future upgrade and more...
* Includes BC-160 Rapid charger
* check my other listings for UT-119 Digital Plug in Unit
* As land mobile dealer and warranty center will provide sales invoice for warranty
* 7 Day Money Back if Defective
* Free Programming if Contacted within 2 days of Close of sale
