20 gal pfaudler reactor, 316 s/s, 90#/125# - 16005

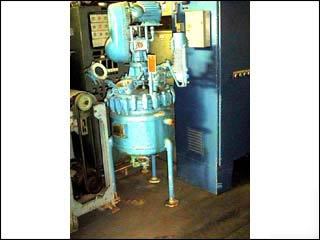

"ONE (1) Used 20 gallon Pfaudler Reactor, 316 stainless steelconstruction, rated 90 PSI or full vacuum internal @ 350 degrees F, jacketed for 125 PSI (110 PSI with F/V) @ 350 degrees F, 20" diameter x 15 1/2" straight side, dished bottom, clamped removable top head, (4) baffles, 6-blade turbine agitator, 1 H.P., 220/440 volt, XP, TW Drivewith mechanical seal, miscellaneous top nozzles, 4 1/2" handhole with cover, 2" bottom outlet with 2 x 1 1/2 discharge valve, on legs. Serial No. 367-0566. National Board No. 25346.
