> New metallurgical compound microscope + 2M camera
New metallurgical compound microscope + 2M camera
Superior optics! Unbeatable low price! Five-year warranty! Huge selection - more than 2000 listings!
Check this box if search in titles & descriptions
Brand Name: AmScope Model No: ME400T-2M Retail Value: $4,800

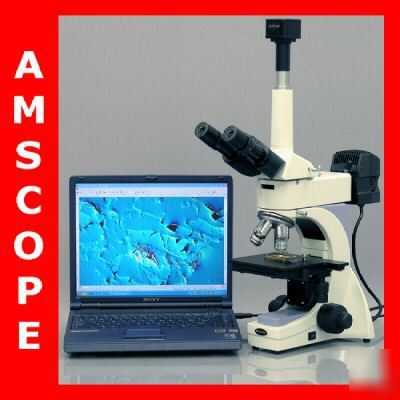

Click on Pictures for Larger View
This microscope is manufactured under the strict guidelines
established under ISO 9001: 2000 Standards.
Certificate number: 3302/200213192.
SATISFACTION GUARANTEED OR MONEY BACK!
SUPER HIGH QUALITY INSTRUMENT!
Click the button below to bookmark this item (IE only. Firefox user press "Ctrl+D").
Find it later under "Favorites" menu in your browser.
* A professional grade metallurgical – metallographic microscope with 2MP images system!
* Comes with a 2.0MP high resolution, high quality low-light color USB2.0 PC digital camera
* Captures microscope images and shows live video on your PC screen
* Displays 2.0 MegaPixel full-screen clear images with high resolution
* Saves still images in BMP, TIFF, JPG, PICT, PTL or other formats
* Measures accurately lengths, angles and areas across microscope images
* Edits microscope images on your computer in the same way as PhotoShop dose
* Built-in reduction lens for the possible largest field of view
* Compatible with Windows 2000/XP/Vista
* EPI-illumination reflected light microscopy system
* Photo/video capability with 23mm universal/standard photo port
* Fully coated optical system with high resolution
* 30° inclined 360° rotatable sliding trinocular head
* Eight levels of magnification, 40X, 64X,100X, 160X, 200X, 320X, 400X & 640X
* Four DIN standard Plan objectives included
* Two sets of widefield eyepiece included
* Intensity-variable halogen EPI-illumination
* Two filter frames and one blue EPI-illumination filter included
* 7-0"x 5-3/4" (180x145mm) extremely large mechanical stage with stain resistant finish
* Low position stage traveling controls
* Full optical glass elements
* Precise ground glass lenses
* All metal mechanical parts
* Coaxial coarse and fine focusing
* Dual side focusing controls
* Focusing tension control mechanism
* 30° inclined 360° rotatable trinocular head
* Adjustable interpupillary distance
* Adjustable diopters on both eye tubes
* Solid metal frame construction with stain resistant enamel finish
* Manufactured under ISO 9001 quality control standards
* Excellent five (5) year factory warranty
* Unbeatable lowest price guaranteed or difference back!
* Satisfaction guaranteed or your money back!
* Focusing Range: 1-9/16" (40mm)
* Interpupillary Adjustment Range: 2-3/16" - 3-0" (55 - 75mm)
* Mechanical Tube Length: 6-5/16" (160mm)
* Head: 30° inclined trinocular
* Camera/Video Trinocular Port: 23mm universal/standard photo tube
* Eyepieces: WF10X (18mm Field of View), WF16X (11mm)
* Objectives: Plan Achromatic 4X (0.1 NA), 10X (0.25 NA), 20X, 40X (Spring, 0.65 NA)
* Stage Dimensions: 7-0"x 5-3/4" (180x145mm)
* Stage Traveling Range: 1-3/16"x2-3/4" (30x70mm)
* Vernier Division: 0.004" (0.1mm)
* Illumination: halogen lamp, 6V/20W
* Power Supply: 110V (Adapter for 220V version available), CE certified
* One Trinocular Compensation-Free Compound Microscope Head
* One Microscope Body with Frame, EPI Illumination System and Base
* Two Pairs of Widefield Eyepieces: WF10X & WF16X
* Four Plan Achromatic Metallurgical Objectives, 4X, 10X, 20X & 40X
* Two Filter Frames and One Blue Filter
