National instruments ni 100 pin digital daq connector
NATIONAL INSTRUMENTS 100 PIN DIGITAL DAQ CONNECTOR
Click here for DAQstuff's CONNECTOR GUIDE for NATIONAL INSTRUMENTS

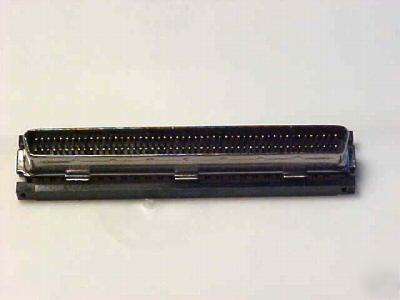

This is for a 100 pin male Amplimite 2x50 IDC ribbon connector AMP part number 749111-8
If two of these connectors are used with qty2 50 ribbon cables (.050 spaving) a 100 pin pin to pin cable is created.
Or If you use the 100 pin with qty 2 2x25 idc connecters you have a 100 pin to 2 50 pin connectors.
Or If you only need to access a few of the signals you can only add those wires.
Ribbon and 50 pin connectors are not included but available at the website.
Compare Prices !!! Digikey price A23689-ND is $17.98 each or $35.96 total without delivery and tax
See our line of DAQ Equipment which includes
50 Pin Breakouts starting at $24.95 100 Pin Breakouts and Relay Boards
68 Pin Adapters starting at $9.95 68 Pin Breakouts starting at $49.95
New! 50 Pin & 68 Pin DAQ Breadboard EZ-Connect Systems
( which gives you INSTANT ACCESS to your DAQ Card )
National Instruments DAQ & Labview Equipment available
LOOK at NI website to see the pdf file.....for data aquisition and digital cameras
http://digital.ni.com/public.nsf/3efedde4322fef19862567740067f3cc/4c0273043695933d862568db00769b1a?OpenDocument
