Blue-m stk-05/STK05 stacked oven (dcc-256 drying ovens)

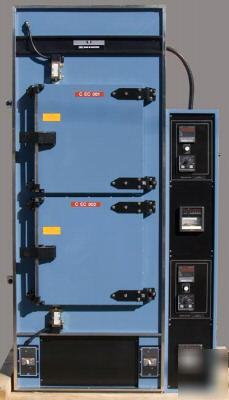

Blue-M STK05 Horizontal Airflow Convection Stacked Oven
Comes with what you see in the pictures. If you don't see it, you probably wont get it.
Specifications are from Blue-M and may vary slightly due to upgrades, options, or revisions this unit may or may not have.
This unit is Intel Surplus. It was in service from 2003 to 2005 and then removed due to equipment changes. It is guaranteed to work and is in like new condition. The STK-05 is similar to the STL-05 but has better airflow. The STK version is based off of the 146 series ovens where as the STK is based off the CC series ovens. More pictures and further information will be coming.
List Price is: Over $20,000.00 from Blue-M new.
Link to the 146 Series Oven Datasheet: Blue-M 146 Series Convection Oven Datasheet
Link to the STL-05 Stack Oven Datasheet: Blue-M STL-05 Stack Oven Datasheet
Link to the Control Systems Datasheet: Blue-M Control System Packages Datasheet
* Aging of Electronic Devices
Blue M stacked ovens have earned a long-standing reputation for exceptional performance, long service life and ease of operation over a broad range of applications. The STL series integrally stacked Blue M mechanical convection oven is suitable for curing, drying, and baking in semiconductor, electronic, and many other industrial applications.
* Heavy gauge steel exterior and stainless steel interior with all exterior panels are at least 16 gauge and interior features reinforced 304 stainless steel.
* Welded construction contributes to Blue M’s legendary strength & reliability.
* Fiberglass insulation - 4 full inches minimizes heat loss.
* Baked on powder-coated blue enamel finish for long-lasting corrosion protection.
* Blue M silicone door seal design for positive sealing of door.
Pro 550 Controller Features:
* Double-size 5 digit LED display for easy viewing from a distance.
* Built-in autotuning allows optimal setting of PID parameters at the touch of a button.
* Eight sets of PID settings for each output enable the system to have custom PIDs for various portions of your profile.
* "Super" function improves performance by "learning" about a system's response to process changes. Signal interference and energy efficiency are factored into the temperature controller's operation.
* Manual mode enables control of output for troubleshooting.
* LCD display can be configured to display thermal profiles, setpoint temperature, process specific text, or other parameters.
* Storage capacity of 30 programs containing up to 99 segments per program, or 300 total.
* Can be used to control cooling features such as proportional dampers or a cooling coil.
* Password protection can be used to prevent unauthorized users from changing programs or accessing critical settings.
* RS-485 communications port (this may not be installed).
* Optical communications interface offers quick connection to a PC. (this may not be installed).
* Local mode enables operation as a single setpoint control, enabling operation without creating a program.
* FM approved overtemperature protection is provided by an independent control device.
Blue M Temp Limit - Overtemperature Protection Description:
The standard Temp Limit Control for the Blue M Pro-550 offers overtemperature protection to protect oven and product. Heaters are latched off, requiring manual reset to restore normal operation. Audible and visual alarms alert operator of fault conditions. The device is UL recognized and FM approved.
SR-1000 Chart Recorder Description:
* Single-pen strip chart recorder.
* 3.9" (100mm) recording area.
* Measures, displays, and records temperature.
* Compact size allows mounting along side of the control console, preserving equipment footprint.
* Annotator pen logs date, time, alarms and configuration messages on chart paper.
Temperature Range: 15°C above ambient to 316°C (650°F)
Interior Volume (per oven): 5.8 cubic feet (164 l)
Interior Dimensions (per oven): 25" W x 20" D x 20" H (635 x 508 x 508 mm)
Note: Empty chamber performance with exhaust closed and at rated voltage.
For More Pictures Please Click the Following:
* Picture 5 - Chamber Doors Open
* Picture 6 - Inside the Control Panel
* Picture 7 - Top Chamber Controls
* Picture 8 - Top Chamber, Chart Recorder, Up-Close
* Picture 9 - Bottom Chamber Controls
* Picture 10 - Bottom Chamber, Chart Recorder, Up-Close
* Picture 11 - PRO-550 Temperature Controller, Up-Close
* Picture 12 - Temperature Limit Controller, Up-Close
