Hrp-dc-203 elox vert brg-type electrical discharge mach

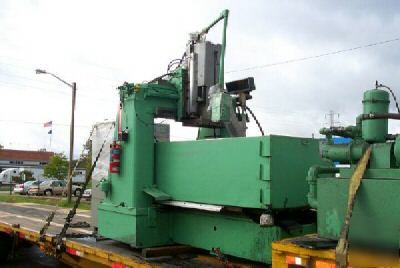

HRP-DC-203 ELOX VERTICAL BRIDGE-TYPE
Serial No 107, Model HRP-DC-203
Complete Servo Hydraulic System
Complete Dielectric Coolant & Filtration System
Table Dimensions, W x L................ 36" x 48"
Platen Size, W x L..................... 18" x 24"
Tank Dimensions, W x D................. 42" x 96"
Tank Height............................ 24"
Table Travel, L-R (Y-Axis)............. 20"
Table Travel, F-B (X-Axis)............. 48"
Distance Ram Platen To Table, Maximum.. 36"
Distance Ram Platen To Table, Minimum.. 24"
Ram Travel Vertical, (Z-Axis).......... 12"
Electrical System...................... 220/440/3/60
Overall Dimensions, W x D.............. 74" x 113"
Overall Height......................... 99"
Weight, Approximately.................. 14000 LBS
All machines/equipment subject to prior sale.
