Torin W3000 torsion coiler

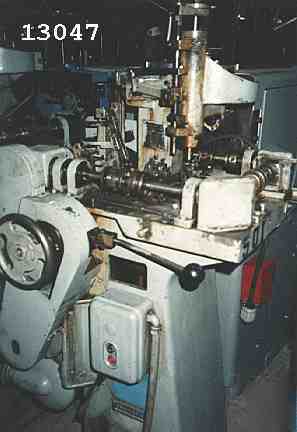

TORIN MODEL W3000 TORSION COILER
Maximum Wire Diameter: .041"
Minimum Wire Diameter: .015"
Maximum Spindle Travel: 2"
Wire Feed Maximum: 4-1/2" (Long Slide Feed)
Horizontal Slide Travel: 3/4"
Vertical Slide Travel: 5/8"
Cam Shaft Diameter: 3/4"
Wire Line Height: 44"
Springs per Minute: 25 to 150
Rated Capacity: NUMBER OF TURNS WIRE DIAMETER
10 .041"
24 .028"
40 .020"
54 .015"
EQUIPPED WITH:
Quill Holder
Standard Slide Feed (with Home Made Griper Mechanism)
(2) Horizontal Slides
AC Motor
Reeves Mechanical Variable Speed Drive
Electrical Controls
Approximate Overall Dimensions:
Approximate Weight:
Serial Number: 131671 (New 1968)
P2 F.O.B. LAKE FOREST, IL - $ 1,950.00
Email us at ****@PerfectionMachinery.com
Call our Sales Staff at 1-(***)-254-8808
Prices do not include any federal, state or local taxes, which are in addition to the purchase price and must be paid by the Purchaser. Any and all foreign duties and taxes are the responsibility of Purchaser. Unless Purchaser furnishes PMS with a tax exemption certificate, any sales, use, excise, or other similar tax, where applicable, shall also be the responsibility of Purchaser and may, at the election of PMS, be added to the quoted purchase price and invoiced by PMS to Purchaser. The failure of PMS to invoice such taxes does not excuse the Purchaser from responsibility for paying necessary taxes.
Some machinery and equipment is located at Fortune 100 Manufacturing Facilities. Most of the machinery and equipment located at these Facilities is disconnected and cannot be seen under power. Unless specifically listed in writing by PMS, all machinery and equipment uses 3 Phase power.
