Potter pcvs-1 control valve supervisory swtich

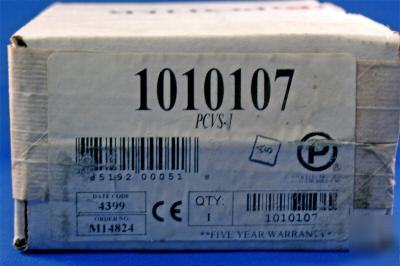

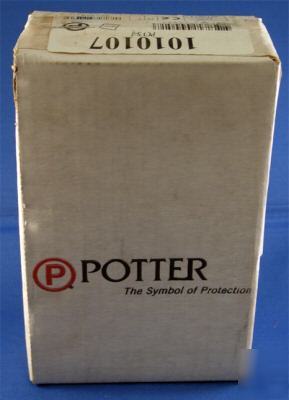

NEW IN BOX ** RETAIL UP TO $176.00 **
UL, ULC, and CSFM Listed, FM Approved, NYMEA Accepted, CE Marked
Dimensions: 4.75"L x 2.25"W x 7.2"H (stem extended)
Enclosure: Cover - Die-cast / Finish - Red Spatter Enamel / Base - Die Cast Zinc / All parts have corrosion resistant finishes
Cover Tamper: Tamper Resistant Screws, Optional cover tamper kit available
Contact Rating: PCVS-1: One set of SPDT (Form C) PCVS-2: Two sets of SPDT (Form C) 15.00 Amps at 125/250VAC 2.50 Amps at 30VDC resistive
Environmental Limitations: -40°F to +140°F (-40°C to 60°C) NEMA 4 and NEMA 6P Enclosure (IP67) when used with appropriate watertight conduit fi ttings. Indoor or Outdoor Use (Not for use in hazardous locations. See bulletin no. 5400694 PIVS-U-EX for hazardous locations.)
Conduit Entrances: Two knockouts for 1/2" conduit provided.
Service Use: Automatic Sprinkler NFPA-13 One or two family dwelling NFPA-13D Residential occupancy up to four stories NFPA-13R National Fire Alarm Code NFPA-72
