36" X144" mattison hyd-fd horiz-spdl surf grinder 21048

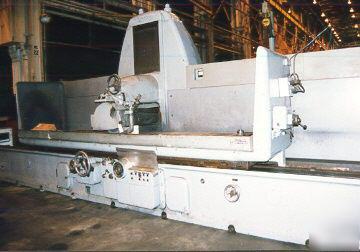

36" X 144" MATTISON HYDRAULIC-FEED
HORIZONTAL-SPINDLE SURFACE GRINDER
(3) 36" X 48" Electro-Magnetic Chucks w/Neutrofier
Table Dimensions (Overall) W X L......... 36" X 146"
Table Working Surface, W X L............. 36" X 144"
Grinding Width Capacity, Maximum......... 36"
Grinding Length Capacity, Maximum........ 144"
Height Under 20" Grinding Wheel.......... 36"
Table Longitudinal, Power................ 144"
Wheelhead Cross Travel................... 36"
Grinding Wheel Diameter, Standard........ 20"
Grinding Wheel Width, Standard........... 6"
Grinding Spindle Speed................... 1150 RPM
Table Longitudinal Feeds, Range.......... 0 TO 100 FPM
Table Cross In-Feeds, Range.............. 0 TO 6 IPM
Grinding Wheel Spindle Motor............. 30 HP
Electrical System........................ 220-440/3/60
Overall Dimensions, L X D................ 30'9" X 10'1"
Overall Height........................... 11'
Weight, Approximately.................... 54000 LBS
PRICE: F.O.B. PENNSYLVANIA.............. $69,500.00
All machines/equipment subject to prior sale.
