Wilton 20" floor model, 1HP, 1725 rpm, 115V motor (kd)

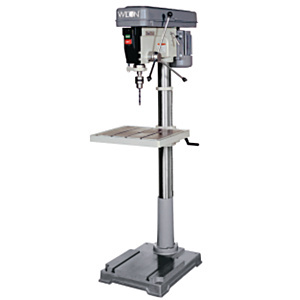

Wilton 20" Floor Model, 1HP, 1725 RPM, 115V Motor (KD)
Cast iron head Large quill allows greater accuracy
Head casting Feature a permanently lubricated ball bearing spindle assembly, using four heavy duty ball bearings mounted in an enclosed quill for extended life
Massive T-slotted production work table (Model 2550 only)
Large ground steel column diameter for maximum head and table support
3-3/8" stroke for deep hole applications
Accurate depth stop for precise hole depths
Practical light to medium duty drill presses.
Base Dimensions (LxWxH/ in.) 22-3/4 x 17-3/4
Base Work Table (in.) 22-3/4 x 17-3/4
Distance Column to Spindle (in.) 10
Drilling Capacity Cast Iron (in.) 3/4
Drilling Capacity Mild Steel (in.) 5/8
Drills to Center of Circle (in) 20
Motor 1-1/2HP, 115V, 1Ph, 1725 RPM
Overall Dimensions 34 x 21 x 67
Range of Spindle Speeds (RPM) 150,260,300,440,490,540,1150,1550,1840,2220,2950,4200
Spindle Distance to Base (in.) 43-1/2
T-Slots Number and Size (in.) 3 & 1/2
Table Size (in.) 18-1/2 x 16-1/2
Work Table Weight Capacity (lbs.) 14 x 16
1 - Wilton 20" Floor Model, 1HP, 1725 RPM, 115V Motor (KD)
