Used r&i air angle gripper dura-grip para-grip gh-22A

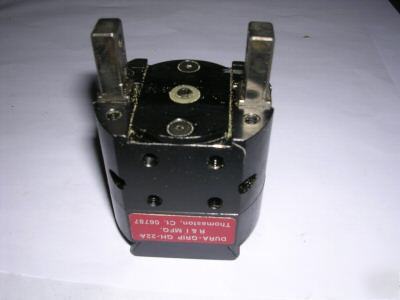

Used Good Condition R&I Angular Air Gripper Dura-Grip Para-Grip GH-22A
2" Diameter Body, Front Dove-Tail mounting
Maximum Total Grip Force 75 lbf at 100 psi
(2) Air Ports are 10-32, 5-100 psi Air Pressure
(2) Tooling Faces are 3/8" by 3/4" with (2) 8-32 Tapped Holes Each
The Outside of the Tooling Faces span 1-3/4" in the Retracted Position
More information is available at the R&I Manufacturing's site @ http:// /catalog/DURA-GRIP%20Angular%20Grippers_r2.pdf
