5" CENTERLESS GRINDER, Unison DEDTRU 288-0000
5" CENTERLESS GRINDER, Unison DEDTRU 288-0000

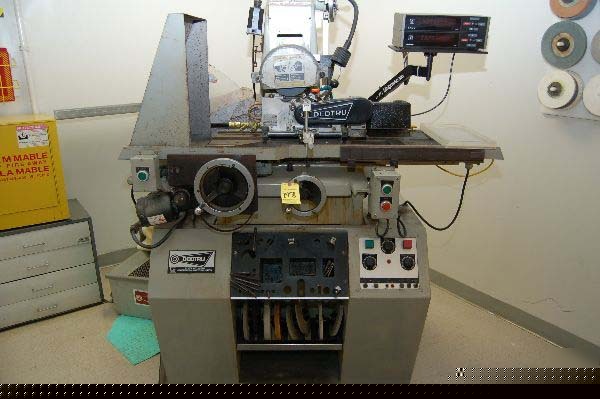

UNISON "DEDTRU" CENTERLESS GRINDER
MODEL: 288-0000 S/N: 5497-3010 NEW: 1984
VERTICAL WORKING HEIGHT (CENTER OF SPINDLE ABOVE)
REGULATING ROLL ................................. 10"
CROSS FEED TRAVEL .............................. 6-3/4"
LONGITUDINAL TRAVEL ............................... 18"
TABLE SIZE ................................... 6" X 18"
O.D. WORK WITH BASIC EQUIPMENT ....... 1/4" TO 1-1/4"
O.D. WORK W/STD. OPTIONAL ACCESSORIES .. 0.031" TO 5"
I.D. WORK - MAXIMUM O.D. ......................... 5"
MAXIMUM WHEEL DIAMETER ............................. 8"
MAXIMUM WHEEL LENGTH ............................... 3"
APPROXIMATE MACHINE WEIGHT .................. 1,500 LBS
UNISON MODEL "C4" DED-TRU CENTERLESS GRINDING UNIT
-DESIGNED TO DO THROUGH FEED, O.D., I.D. AND
REGULATING ROLL WITH ITS OWN SELF-CONTAINED DC
DRIVE CONTROLLER. REGULATING ROLL SIZE 4" X 4"
HARIG #618W SURFACE GRINDER BASE
OPTIONAL FINE DOWNFEED KNOB (.0001" GRAD.)
"AUTOMATIC LONGITUDINAL FEED CYCLE" - PROVIDES
RAPID APPROACH TO WORK, SLOW DOWN TO FEED RATE,
FEED TO POSITIVE STOP, DWELL FOR PRESET TIME, &
AUTOMATIC RAPID CARRIAGE RETURN. SLOW DOWN
POSITION, FEED RATE, POSITIVE STOP, & DWELL TIME
ARE ADJUSTABLE. INCLUDES LIMIT SWITCH START & STOP
3 HP "POPE" SUPER-PRECISION DIRECT DRIVE SPINDLE
SUPPLIED WITH HOLE THROUGH COLUMN FOR LONGER PARTS
EXTERNAL COOLANT TANKS & PUMP (WITH FILTRATION)
** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
** EXCEPTIONAL CONDITION & APPEARANCE (ORIGINAL PAINT) **
Machine Location: HARRISON, NJ
