Tektronix 7603 oscilloscope 7A26 7B71 7B70 opt. 3/20

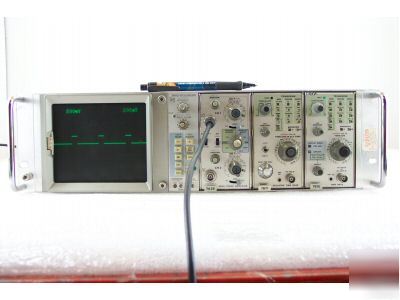

Tektronix 7603 100Mhz Oscilloscope w/ Option & Plug Ins
The 7603 Oscilloscope Mainframe is versatile, dependable, easy to use and accepts three 7000-Series plug-ins. The plug ins included with this scope are: 7A26, 7B71, & 7B70.
Provides CRT Readout of Parameters
The 7A26 Amplifier Plug-In is one of the most popular plug-ins used today for the 7000-Series Oscilloscope Mainframes. This dual trace plug-in offers 5 operating modes, trigger-source selectability, and trace identify. Vertical sensitivity of 5 mV/div to 5 V/div and with appropriate mainframe, DC to 200MHz bandwidth is maintained constant over the entire range. Other features include a 20MHz bandwidth limit switch which reduces noise in lower-frequency applications.
The 7B71 Delaying Time Base Plug-In provides bandwidth / sweep speed compatibility with any 7000-Series mainframe, horizontal amplifier input for uncalibrated X-axis deflection from an external source, 2nS to 5S/DIV, 0 to 10X, delay mult, Triggering to 200 MHz.
The 7B70 Time Base Plug-In provides bandwidth / sweep speed compatibility with any 7000-Series mainframe, horizontal amplifier input for uncalibrated X-axis deflection from an external source, and time/div range is from 2 ns/div to 5 s/div.
