New -deluxe digital apart lux measure meter data hold

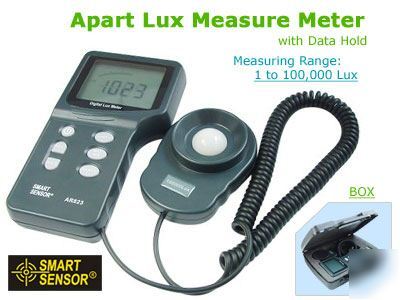

New-Deluxe Digital Apart Lux Measure Meter Data Hold Electronic Large LCD (AR823)
â–¼Click image below to enlargeâ–¼
Major parameters Specification
6.Lux/Fc selectable(1Fc=10.76 Lux)
1. Install 9V battery correctly,remove protective sensor cover and press ON/OFF button for measurement.
2. Lux /Fc selection:Press Lux/Fc button to change measureing unit.
3. Measuring range selection:Press Range button to select the desired measruing range:
1st range:0-2000 Lux (Reading X1);
2nd range 2000-20000 Lux (Reading X 10) ;
3rd range: 20000-100000 Lux (Reading X 100);
If the measurement is out of range an OL indication will appear.
4. Max/Min function: Press MAX MIN button,LCD display MAX HOLD indication and maximum reading, Press MAX MIN button again to for minimum reading,LCD display MAX HOLD and lock the reading ,Press again will back to normal measurement mode.
5. Data hold: Displays can be held at any time by pressing the HOLD button while in normal mode
6. Relative function:Press REL button to enter relative comparision function,main display is the current reading ,average measuring reading is underneath.
7. when the battery icon is show (low battery indication) please replace the battery to prevent imprecision measurement.
8. Power off: The unit will automatic turn off in 5 mins, press ON/OFF button to turn off the unit directly.
Measuring range: 1 to 100,000 Lux
Measurement repeatability : + / - 2%
Accuracy: <3% rgd + / - 0.5% f.s + / -(4% rgd +/-10dgts) if <10000 Lux (calibrated to a standard incadescent lampe at color temperature 2856K)
Operation conditions: 0C-50C; <=80% RH non-condensing
Storage conditions: -10C-50C; <=70% RH non-condensing
1 x New-Deluxe Digital Apart Lux Measure Meter Data Hold Electronic Large LCD (AR823)
