Blonder tongue ap series AP40-450-a agile processor

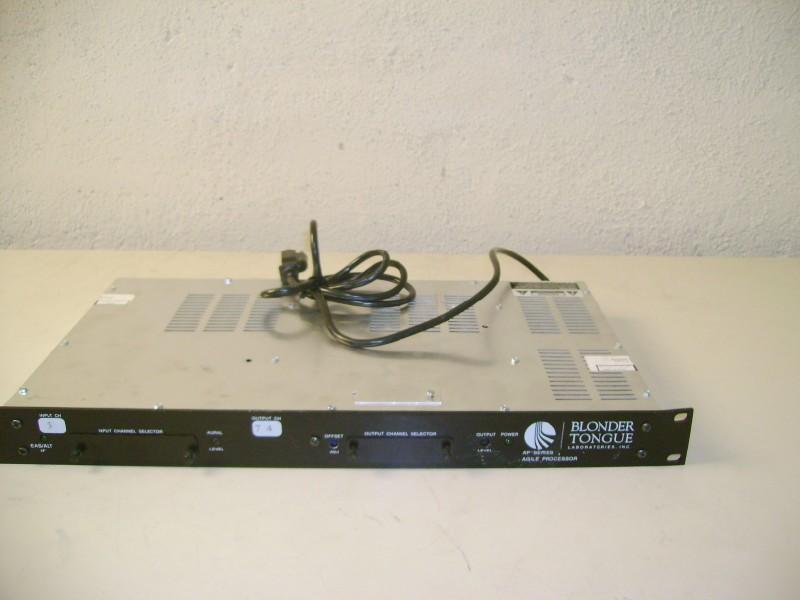

Blonder Tongue AP Series AP40-450-A Agile Processor
Blonder Tongue AP Series Agile Processor
The AP Series includes professional quality, agile heterodyne processors equipped with the Emergency Alert System (EAS) feature, which can also be used as an alternate IF input. These units convert any channel in the 50 to 806 MHz (7 to 43 MHz with Option 17) frequency range to any channel in the 50 to 450/550 MHz (7 to 450 MHz with Option 04) frequency range. The AP Series is ideal for moving an off-air channel (VHF or UHF) or any single channel source to any unused channel (broadcast or CATV, including HRC and IRC assignments) in the system. Agile channel selection permits on-the-fly channel changes and reduces the need for large inventories of channelized products. These processors have a wide range of standard and optional features that make them very suitable for advanced SMATV and CATV systems.
The AP Series takes a single channel in the 50 to 806 MHz frequency range and converts it to any channel in the 50 to 550 MHz frequency range. All models feature rock solid, synthesized frequency control, with a tuning increment of 250 kHz. Frequency selection is accomplished via front panel DIP switches. A channel listing chart is conveniently attached to the inside of the DIP switch cover. True vestigial sideband SAW filtering guarantees superior broadcast picture quality. Two SAW filters are used to ensure proper adjacent channel rejection. Delayed AGC circuitry automatically compensates for input signal variations. These processors have an external IF loop, which allows interfacing with video all-call and signal scrambling systems.
The AP Series products are housed in a single height, 1.75" high, rack mountable, and aluminum chassis. The units have a complete set of level controls, including: aural tap depth, video response adjust, frequency fine tune, and RF output. All controls are located on the front panel for ease of operation
This item was pulled from a lab that shut down
* For first time International Orders we prefer a Bank Wire or Money Order.
* Will Calls are OK - just call ahead.
What is pictured in this listing is what you are purchasing. I do my best to get the correct part numbers but refer to the pictures just in case. If it is not in the picture, it is not included. Power supplies, Cables, Cords, Adapters and Manuals, are NOT included unless they are in the Pictures.
