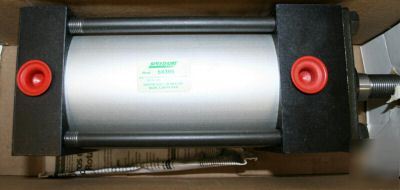

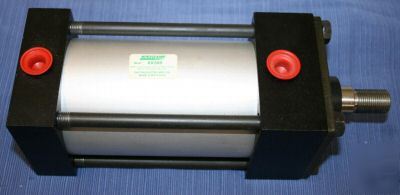

Large bore tie rod double acting air cylinder


Air Cylinder,3 1/4 In Bore,4 In Stroke
Air Cylinder, Double Acting, Large Bore Tie Rod, Bore Dia 3 1/4 In, Stroke 4 In, Max Pressure 250 PSI, Mounting Style Side Tapped/Sleeve Nut, Cushion Type None, Cylinder Ports 3/8 NPT In, Operating Temp Range -20 to 200 F, Total Length 10.75 In, Max Load 2075 Lb, Black and Silver Finish, Rod Dia 1 In, Rod Thread 3/4-16 In, Rod Thread Length 1 1/8 In, Meets JIC, NFPA
Please refer to the Grid on the left for this item's Condition Rating. For questions about how we rate our items, please contact us at (***) 276-1073 x228.
Optional Warranty Information:
