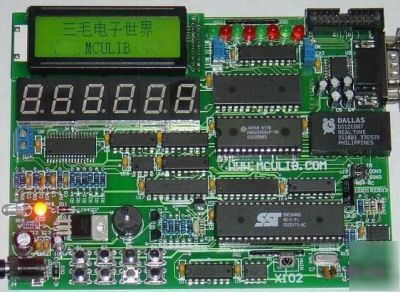

X102-51 microcontroller simulation learning board keilc
X102-51 microcontroller Simulation Learning Board KeilC
X102-Learning Board Features built-in simulation, directly compatible KeilC online programming software debugging, information includes the functional modules schematic and learning routines for users reference, send all chip board includes Chinese manual, Power / Series I Line / remote control / voltage meter with a complete set of accessories, users no longer need to purchase learning SCM any products containing equipment, expansion mouth, users can be made through the circuit I use this simulation study of the plate to debug embedded graphics point LCD (122 * 32) / A/D, D/A
* Built-in simulation, directly compatible KeilC online programming software debugging
* Information includes the functional modules schematic and learning routines for users reference
* Includes Power / Serial Line / remote control / voltage meter with a complete set of accessories, MCU users no longer need to learn any additional equipment
* Products containing extended mouth, users can be made through this circuit I use the simulation study board debugging
* Embedded graphics dot-matrix LCD (122 * 32) / ADDA / RAM / reset / clock chip, and other complex circuit learning content
* Digital display circuit
* Keyboard input circuit
* Infrared receiver circuit
* Infrared transmitting circuit
* Graphics dot-matrix LCD circuit
* Current and voltage conversion circuit
* RS-232 communication circuit
* Crystal oscillator circuit
9V high-end switching power supply
* Simulation 40pin connector
