New kingsley marking machine atd-106C - nearly

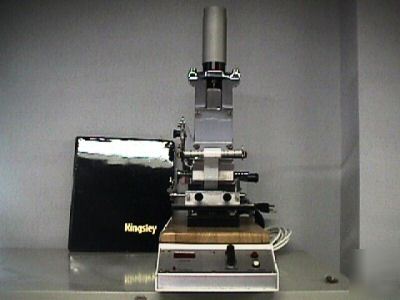

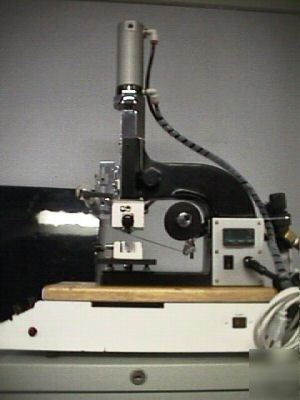

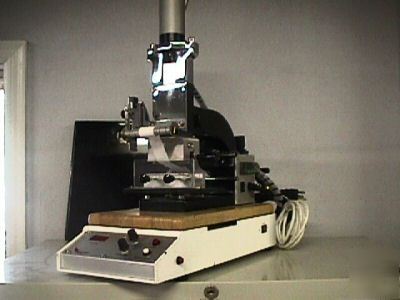

KINGSLEY MACHINE CO. MARKING MACHINE ATD-106C
NEARLY NEW - VERY LIGHTLY USED
The ATD-106C is one of a full line of KINGSLEY industrial marking machines. It is an air-operated, push button controlled marking machine designed to make alphanumeric characters on insulated wire, rigid tubing, heat shrink sleeving and thin wall flexible tubing.
This marking machine was engineered to imprint on a wide range of insulation and material such as PVC, Nylon, Kynar, Kapton, Teflon, Polyolefin, etc.
With a curved face type, the ATD-106C will mark insulated wire with outside diameters (OD) ranging from .035” to .350”. Depending on the OD and the type selected, the marks may be imprinted to read vertically or horizontally.
Flat face type will mark wire with OD’s greater than .350”. Flat face type will also mark flexible sleeving and thin tubing (in flattened position) with an inside diameter (ID) ranging from .094” to 2.0”.
This machine marks wire or sleeving each time the operator presses the push button switch. The rate of production will vary depending on the speed of the operator and job specification.
The ATD-106C requires 115VAC 3 Ampere.
The operating temperature range is 200º to 600º F.
The heater element is 250 Watts.
* Prints on insulated wire and cable, heat-shrink sleeving, rigid or thin wall flexible tubing and multi-lumen medical tubing
* Utilizes individual steel type
* Prints one-, two- or three-line legends on sleeving
* Prints horizontally or vertically
* Interchangeable fixture design prints various substrates with precision
* Lightweight, portable and inexpensive to operate
* Prints wire on sizes from .035” to .750” OD and sleeving sizes .093” to 2.0” ID
Application: Wire – sizes .035” to .750” OD
Sleeving – sizes .093” to 2.0” ID
Operation: Pneumatic, foot pedal activated
Printing Method: Hot-stamp process, individually set alpha-numeric type and/or unitized engraved
Printing Characteristics: Wire: One-line, horizontal or vertical printing along the wire or simultaneous end printing with appropriate wire holding fixtures. Sleeving: one-, two- or three-line, horizontal or vertical printing
Hot Stamp Foil: Kingsley bulk foil in 100’ rolls
Power Requirement: 110V standard; 220V available
Air Requirement: 100 PSI / 5 CFM
Controls: On/Off switch with power on indicator; adjustable temperature controller with indicator; solid-state dwell timer; air pressure regulator and moisture trap.
Machine supplied with: Heavy duty grounded power cord, safety guard; single line type holder, single line adapter sleeve and tape holder. Operator manual included
Dimensions: Height: 15” (39.3cm)
Summary of My Selling Policies
If you have questions, please feel free to contact me at ****@aol.com. Usually, I will respond within 12 hours.
