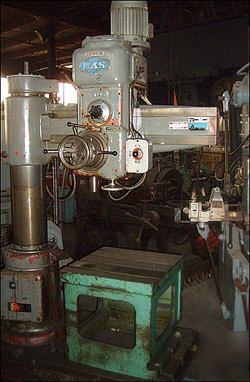

Mas radial arm drill - 8 1/2" x 32", very good


Drilling Capacity – 1” M.S., 1.5” C.I.
(12) Spindle Speeds: 56 to 2800
Maximum Distance Spindle to Column – 31.5”
Minimum Distance Spindle to Column – 9”
Drill to the Center of a 71.5” Diameter
Vertical Travel of Arm – 20.5”
Horizontal Travel of Arm – 23.24”
Swing of Arm on Column – 360 d.
Working Surface of Base: 33.46" W x 30.71" L with T-Slots
Maximum Distance Spindle to Base: 54"
Minimum Distance Spindle to Base: 14"
Manual Clamping to Head on Arm
2 HP Motor 3 Phase, 220-440 Volts
Overall Dimensions: 63" L x 32" W X 88" H
