Acopian 40EB06 miniaturized 40 vdc @ 60 ma
Acopian 40EB06 Miniaturized 40 VDC @ 60 mA

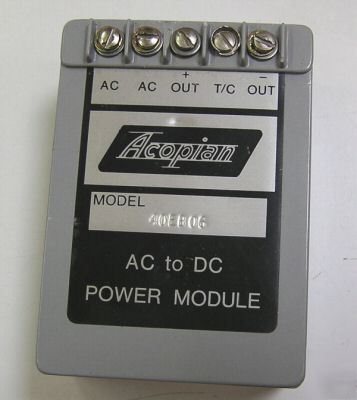

Acopian model 60EB05 Miniaturized AC to DC Power Module, with screw terminals. Fully encapsulated, with the output factory preset to within ±1%. Input can be 105-125 VAC, 47 to 420 Hz, single phase. Output is 40 VDC @ .06 A. The T/C terminal is the Trim terminal, which can be used to trim the output more precisely to the nominal voltage rating by connecting an external resistor from the T/C terminal to either the + or - terminal. Either positive or negative terminal may be grounded. Small in size, just 1.6" X 3.5" X 2.5". Terminal strip input/output connecitons eliminate all need for sockets or soldering. Short circuit protection, encapsulated construction, and conservative design assure long term reliability. Good condition.
30-Day Warranty, parts & labor. 10-day right-of-return
* Arizona residents add 6.1% Sales Tax
