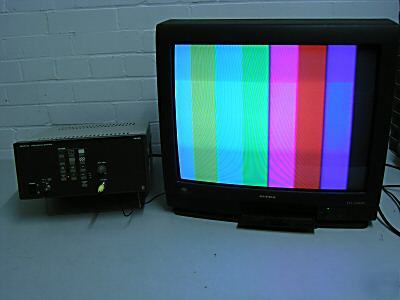

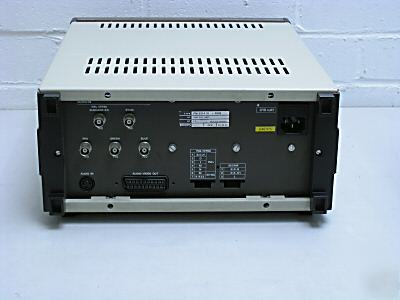

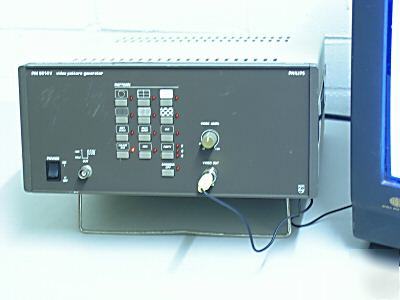

Phillips pm 5514 vi rgb, video test pattern generator
* Circle - linearity and geometry
* Center cross/Border lines - centering and pin-cushion correction
* White - "White D", purity and beam current adjustment
* Dot pattern - static convergence
* Cross hatch/Center indication - dynamic and corner convergence centering
* Chequerboard pattern - useful for basic alignments
* Grey scale (8 step) - video amplifier linearity
* Multiburst (8 bars of definition lines) - video bandwidth and resolution
* VCR - specially designed for checking bandwidth, linearity, sensitivity and AGC of chroma amplifiers in VCRs.
* Color bar - overall color performance checks
* DEM pattern - color demodulator and sub-carrier frequency checks
* Purity (3 primary colors and combinations) - purity checks
Manuals, Cables, Software, Original packing etc. are not included in the sale unless specifically referred to in the item description.
Illustration may be a stock photo and not the item for sale.
Please read the item description carefully.
If you have any problems let us know and we will do our best to rectify the problem or offer a refund.
