Air regulator w/ particle filter & moisture separator
Riland Mini - Air Regulator with built in particle filter & moisture trap w/ quick drain valve
You get the brand new kit shown above. This is an original Riland Replacement Part for all of our Welding / Plasma Cutters.
These are superior air regulators for Plasma cutters, compressors or other machines requiring clean, accurately regulated, moisture free air. This is a direct replacement for any air regulator on our Riland Cut40, Cut60j, Super160, Super160P, CT416 and other machines requiring compressed air.
Pressure gauge reads: 0-150psi and 0-1MPa. So you get both standard and metric. Regulator body is adjustable via the pop up - turn and push down locking dial. Has standard 1/4" NPT female inlet and outlet with 1/8" NPT female for pressure gauge. The plastic bowl is oring sealed and removable to access the brass particle filter, which is also removable. The design has a built in water separator and quick drain valve.
Normal operating pressure is 100psi, Max 135psi. Nominal flow of 6 CFM. Operating temperature range 41-140 degrees F.
Dimensions: 6.25" Long and roughly 1.56" Diameter. The clear cup is 2.335" Long.

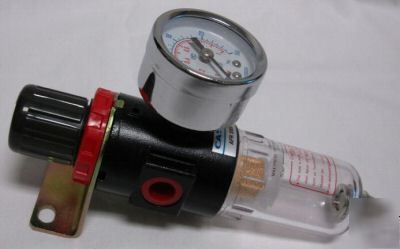

Each win gets 1 kit which consists air regulator/filter, mounting bracket and pressure gauge. As pictured to the left.
