Nikon 6B autocollimator, brightfield (sim: 6C, 6D)
Technology Equipment Corp is a global dealer of new and used high-tech equipment, parts & materials, including fiber optics, test equipment, semiconductor manufacturing instrumentation, laboratory, microscopes, metrology, and more.
Nikon 6B Autocollimator, Brightfield (Sim: 6C, 6D) Used
Model/Part No:6B Our Item ID: 3011

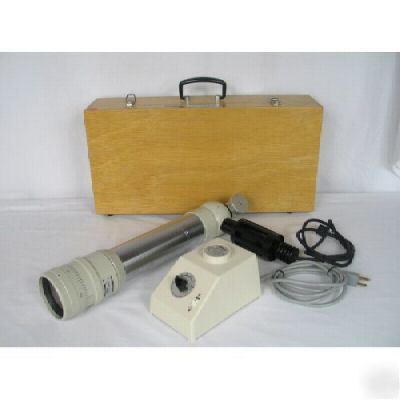

Carrying case, extra bulbs, light source, and manual.
Nikons line of autocollimators provides the exceptional accuracy and reliability required for demanding measurements such as checking parallelism of end surfaces, squareness, flatness of surface plates, straightness of movement and calibration of rotary tables and dividing heads. The 6B model is for bright-field use.
Telescope Magnification: 38x Objective: f=300mm; effective aperture: 70mm Measuring Range: 30 minutes of arc. Minimum Reading: 0.5 seconds of arc. Readout System: Adjustment in viewfield and reading on micrometer Measuring Accuracy: 0.5 second of arc within a range of 5 minutes of arc. 1 second of arc within a range of 30 minutes or arc Viewfield: 6B: bright-field, 6D: dark-field Light Source: 6V 15W special bulb. Power Supply: 110 VAC 50/60 Hz. Dimensions of Main Body: Outer diameter of lens barrel support: 68mm; Overall length: approx. 490mm.
Item Tested?: TestedPhysical Condition: Very Good; Working Condition: Fully Functional20 | 22x 10x6 | 1
