150Tn STRAIGHTEN PRESS, Pressmaster RTP-150T
150Tn STRAIGHTEN PRESS, Pressmaster RTP-150T

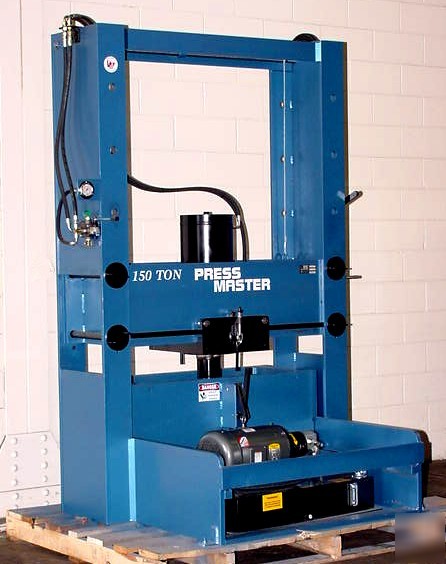

150 TON PRESSMASTER ROLL-IN TABLE STRAIGHTENING PRESS
NEW - IN STOCK FOR IMMEDIATE DELIVERY
RATED CAPACITY .............................. 150 TONS
WIDTH BETWEEN UPRIGHTS ...................... 48"
DEPTH BETWEEN POSTS ........ ................ 16"
MAXIMUM RAM TO TABLE ........................ 32"
STROKE ... .................................. 16"
TABLE TRAVEL ................................ 29"
FLOOR TO TABLE TOP .......................... 26"
CYLINDER BORE SIZE .......................... 10"
PRESSING SPEED .............................. 12 INCH/MIN
RETURN SPEED ................................ 16 INCH/MIN
BASE ........................................ 52" X 54"
HEIGHT ...................................... 86"
WEIGHT ...................................... 3,200 LBS.
MOTOR SPECS: 10 HP, 230/460 VOLT, THREE PHASE
-ELECTRIC/HYDRAULIC OPERATION PROVIDES SMOOTH, CONSISTENT
-MOVEABLE TABLE ALLOWS FOR EASY LOADING AND UNLOADING OF
-MOVEABLE WORKHEAD FOR OFF-CENTER WORK.
-OPEN SIDES TO FACILLITATE WORK ON LONG PIECES.
-PANEL MOUNTED GLYCERINE FILLED GAUGE.
-SAFETY VALVE PROTECTS AGAINST OVERLOADS.
-FLAT RAM NOSE CAN BE EASILY CHANGED TO ALLOW THE USER TO
ADAPT THE PRESS TO A SPECIFIC JOB.
-CYLINDER HARD CHROME SHAFT CERTIFIED ISO-9002.
-QUALITY BALDOR MOTOR TOTALLY ENCLOSED FAN COOLED, LOW SPEED.
-FC: FLOW CONTROL TO MATCH RAM SPEED TO JOB..........$300
-PR: PRESSURE REGULATOR TO CONTROL THE AMOUNT OF PRESSURE
REQUIRED............................................ $300
-FPS: FOOT PEDAL-ELECTRIC SOLENOID VALVE FOR HANDS-FREE
OPERATION, COMPLETE WITH PRESSURE REGULATOR......... $1,600
-ASC: ADJUSTABLE STROKE CONTROL C/W FOOT PEDAL-ELECTRIC
SOLENOID VALVE AND PRESSURE REGULATOR............... $2,000
Machine Location: HARRISON, NJ
