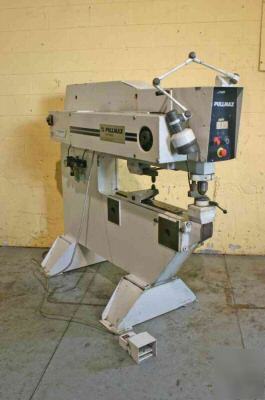

Nib pullmax model #p-205 bler
Photo Sharing and Video Hosting at Photobucket
SERIAL ................................... 71840-08
MODEL .................................... P-205
YEAR NEW ................................. 1998
CUTTING - START @ MATERIAL EDGE .......... 1/4"
CUTTING - START IN CENTER OF MATERIAL .... 3/16"
NIBBLING - START @ MATERIAL EDGE ......... 3/16"
NIBBLING - START IN CENTER OF MATERIAL ... 5/32"
JOGGLING & BEADING ....................... 10 GA.
DISHING .................................. 5/32"
LOUVERING & FLANGING ..................... 1/8"
PUNCHING ................................. 13 GA.
CIRCLE CUTTING DIAMETER RANGE ............ 5-5/16" TO 41-5/16"
MAXIMUM CUTTING SPEED .................... 40 FPM
CUTS PER MINUTE (VARIABLE) ............... 400 TO 4000
STROKE LENGTH (ADJUSTABLE) ............... .067" TO .276"
THROAT ................................... 42"
CIRCLE CUTTING ATTACHMENT ................ YES
STRAIGHT EDGE GUIDE ...................... YES
PUNCHING & SHEARING TOOLING .............. YES
MOTOR .................................... 3 HORSEPOWER
