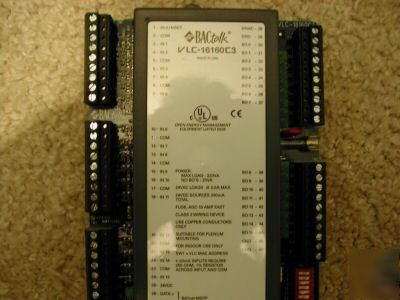

Alerton bactalk vlc-16160C3 ddc controller board
This DDC controller was removed from a working system.
The controller is in working condition and was online and working prior to removal.
Controller was in a UL listed enclosure at a clean residential estate.
The Alerton® BACtalk® VLC-16160C3 is a high-performance, fully programmable logic controller designed for central plant systems, lighting
panels, and other applications with numerous control points. As a native BACnet controller, the VLC-16160C3 integrates seamlessly with your BACnet
system, communicating at up to 76.8 Kbps on a BACnet MS/TP LAN. It can also operate as a stand-alone controller.
The VLC-16160C3 supports the Alerton Microsetâ„¢, Microset II, and Microtouchâ„¢ intelligent wall sensors, which offer convenient data display,
setpoint adjustment, and technician access to equipment setup parameters.
All VLC-16160C3 control logic is programmed with Alerton’s easy-to-learn graphical programming language, VisualLogic®. Programming and setup
data are stored in nonvolatile flash memory, ensuring stable and reliable operation.
The VLC-16160C3 is built for high-speed processing, with an internal logical loop time of 100 msec. Programmable timers also maintain a resolution of
100 msec. High-resolution, 10-bit analog inputs are software configurable to accept thermistor, dry contact, 0–5 VDC, or 4–20 mA signals.
