Jdsu acterna dsam-2500B digital serviceactivation meter
JDSU Acterna DSAM-2500B Digital Service Activation Meter
This Unit Is Currently In Transit From CALIBRATION!
Included Accessories Listed at the Bottom.
Be sure to add us to your Favorites list!.
Warranty: 30 Day Exchange Warranty
Acterna DSAM-2500B Digital Service Activation Meter
The Acterna DSAM is a high-speed data installer meter that increases the number of cable modem installs per day. Using exclusive digital signal processing and integrated DOCSIS/EuroDOCSIS chipset technology, the meter communicates with the network CMTS to verify suitable conditions for cable modem installation from the subscriber's location. The DSAM is also equipped with signal level meter capabilities, including spectrum scanning for ingress assessment and mini-scan analysis of up to twelve analog and/or digital channels. The meter's AutoTest capability makes installations easier and more reliabe than ever before.
* All-in-one meter includes DOCSIS/EuroDOCSIS service testing and SLM features.
* Autotest capability with administration security.
* Environmental resilience and robustness.
* Extensive help system directly linked to meter capabilities.
* Multiple language support.
* Accuracy: ±10 ppm at 77°F (25°C)
* Channel Bandwidth: 6 MHz
* Analog Level Measurements:
* Signal Types: CW, video and audio (NTSC, PAL, and SECAM)
* Range: -40 to +60 dBmV
* Resolution Bandwidth: 330 KHz
* Accuracy: ±1.5 dB typical @ 25°C
* Digital Level Measurements:
* Modulation Types: QPR, QPSK, QAM (DVB/ACTS)
* Range: -40 to +60 dBmV
* Resolution Bandwidth: 330 kHz
* Accuracy: ±2.0 dB typical @ 25°C
* Sweep Rate: 1.8 seconds or faster
* Display Scaling & Range: 5 and 10 dB/division; 6 vertical divisions
* Sensitivity: -35 to 60 dBmV
* DOCSIS/EuroDOCSIS compatibility: 5 to 42 MHz 42/88 MHz (min. downstream DOCSIS center freq. 100 MHz)

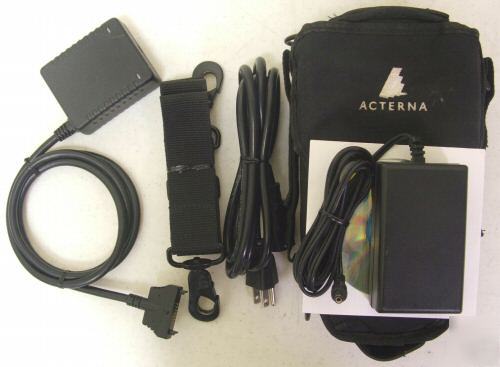

* DSAM-2500B Digital CATV Meter
* Soft Carrying Case For DSAM
