Model 4A trace a punch duplicator template duplicate
Model 4A Trace A Punch Duplicator
* Template making and duplicating
* Low production fabricating

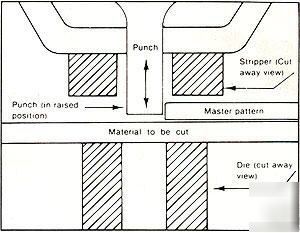

This is the easiest, most economical way to produce low production metal and plastic profiles. Trace-A-Punch® follows your guided template to produce burr free straight and contoured outlines and holes. Simple, rugged meehanite casting construction insures very little maintenance.
An existing part can be used as the master pattern or one can easily be made by tracing over acetate-plastic .020-1/4" with a sharp scriber or razor knife. An office copier can be used to produce a master by coping on to Mylar-plastic and cutting with scissors.
* Cuts most materials including plastic, stainless steel and titanium without burrs or distortion
* Makes blanks from a template without a blank die for try out
* Fills gaps between hand filing and the steel rule die
* Easily and accurately cuts 60 linear inches per minute
* Keyed ram permits use of square or irregular shaped punch without heeling (Model 4A & 4 only)
* Easily adjustable stripper
* Eliminates sawing and filing
* Saves time over conventional cutting methods up to 95%
* Size of blank limited only by what operator can handle
* Easily adjustable to thickness of material
* Cuts metal or plastic without tool change
* Will cut tubing over 3" I.D. or formed metal
