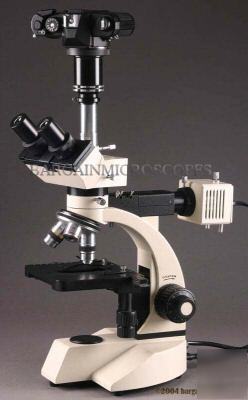

32X-400X upright metallurgical trinocular microscope
High Quality Microscopes at Bargain Prices!
Bargain Microscopes and Bargain Accessories for Microscopes.
Simple, Basic, Straight to the Point - You Save Here!
You've came to the right place to save lots of money on high quality microscopy items.
METALLURGICAL - METALLOGRAPHIC
Camera and Attachment: Not Included.
Camera and Laptop: Not Included.
Photo only demonstrates capability of equipment to connect to Computer.
It does not show what's included.
Camera, Attachment, Monitor: Not Included.
Photo only demonstrates capability of equipment to connect to ccd cameras and monitor.
It does not show what's included.
* Good Quality Upright Trinocular Metallurgical - Metallographic Microscope!
* Perfect for Detailed Examination and Micro-Analysis of a Metallic Surface!
* Upright Design (Objectives Above the Stage).
* Obtain Highly Magnified Images of Surface Structure.
* Excellent for a Variety of Industrial and Research Applications including Metallurgical Labs, Silicon Wafer Inspection, Industrial Inspection - Quality Control, and Foundries!
* Great Quality Imaging at a Super Low Price!
* Advanced Epi-Illumination Design provides Maximum Lighting for Optimal Image Clarity.
* Light Travels Through the Objective, Reflects off Object's Surface, and goes Back Into Objective!
Photography - Video Trinocular Port
* Camera/Video Trinocular Port! Has Trinocular Photographic Port for taking Photographs or Video!
* Take Quality High Resolution Digital Images with your Camera!
* Attach your Digital Video Camcorder for Stunning Video!
* Bring Digital Images and Video into your Computer and Email!
* Contact us about Optional Accessories for taking Digital or Film Photos, Digital Video, as well as attaching CCD Cameras for Output to a Display Monitor.
* Six Magnifications: 32x, 40x, 80x, 100x, 320x, and 400x.
* Two Eyepiece Sets Included: Wide Field 8x and Wide Field 10x.
* Three DIN Objectives: 4x (Achromatic), 10x (Achromatic), and 40x (Plan).
* Spring Loaded 40x Objective to Protect Objectives and Specimens.
Head - Interpupillary Distance - Diopter
* 45 Degree Inclined Trinocular Head, Rotatable 360 Degrees.
* Adjusts to the Distance Between your Eyes: 55 to 75mm InterPupillary Distance.
* Diopter Adjustment on Both Oculars to Correct for Your Specific Vision Needs.
* Three Filters Included: Yellow, Blue, Green.
* Iris Diaphragm Adjustment for Better Light Control.
* Condenser Alignment Knobs.
* Variable Intensity 20W Halogen Epi-Illumination in External Rear Housing.
* Light Aperature Diaphragm Adjustment.
* Lamp Centering Knobs for Precision Alignment of Light Source for Optimal Images.
* Graduated Mechanical Movable Stage: Size 142mm x 132mm.
* Low Position Coaxial X-Y Slide/Stage Movement Knobs - Range of Movement: 78mm (X-Direction - Slide Movement) x 54mm (Y-Direction - Stage Movement).
* Detachable Stage Slide Micrometer.
* Coaxial Fine and Coarse Focusing Knobs on Both Sides of Microscope.
* Maximum Distance From Bottom of Longest Objective to Top of Stage: 28mm
* Coarse Adjustment Travel Range: 30mm (Stage Movement Distance Up/Down).
* Fine Adjustment Division: 0.002mm.
* Tension Adjustable Coarse Focusing.
* Total Overall Height of Microscope: 422mm.
* Instrument Weight: 12.5 lbs.
* Includes: Extra Bulb and Fuse.
* Includes Metal Microscope Slide to Hold Specimen.
* Optional Measuring Kit: This Microscope has the ability to give precise measurements, with the right optional equipment.
* Manufactured under ISO: 9001 Standards.
* 110 VAC Power Requirement (Contact us about 220V availability).
* High Quality Solid Construction!
* Precision Made Glass Optics!
* This product is covered by a 5 Year Manufacturer's Warranty!
Cold Worked/Annealing Treatment
