Copeland r-22 compressor BRK2-1200-tfd-902, 12HP,

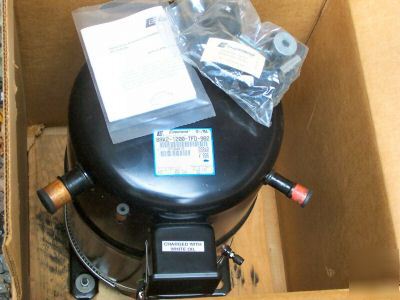

Copelaweld® BR-Line Motor-Compressor, Hermetic, Model BRK2-1200-TFD-902 for R-22 Air Conditioning & Heat Pump Applications, w/ Crankcase Heater. Includes Mounting Hardware and Application Engineering Bulletin.
Grainger - Old Catalog Number 4D645 (Discontinued BY GRAINGER - they now sell Matsushita brand)
McQuay - Equivalent to Part Number 070185404
Patton - Replacement for CCH1200 Air Cooled Condensing Unit.
-Approved for heat pump applications
-Full line approved for 50 Hz operation
-Internal suspension system eliminates vibration
-Semi-directional gas flow to assure even motor cooling
-Low foaming mineral base lubricant
-Internal inherent line break motor protection
Base Mount Hole Center Size 8.656 Inches on 4-Hole Square Pattern (.890 Diameter Hole Size), Length 12 3/4 Inches, Height 18 7/16 Inches, Width 14 Inches.
150,000 BTUh (12.5T) Nominal Rating w/ EER 9.2 for Air Conditioning Applications
126,000 BTUh (10.5T) Nominal Rating w/ EER 9.7 for Air Conditioning Applications
16.2 T (194,900 BTUh) Capacity @ 45ºF Evap - 90ºF Cond. Temp.
12.1 T (145,400 BTUh) Capacity @ 45ºF Evap - 130ºF Cond. Temp.
Nominal 12HP, 3Ph 460V-60Hz & 380/420V-50Hz, 27.6 RLA, 135 LRA
1-1/8" Sweat Stub Suction Connection x ¾" Sweat Stub Discharge Connection

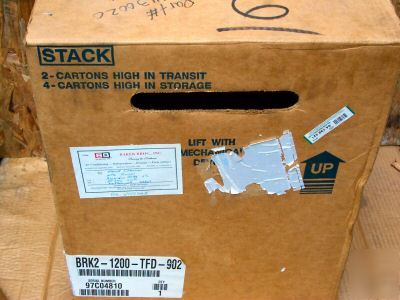

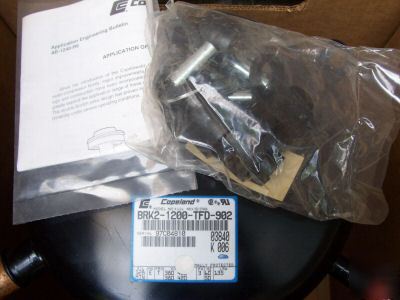

CONDITION: NEW in Original Box, Including Mounting Hardware Packet and Application Engineering Bulletin Literature.

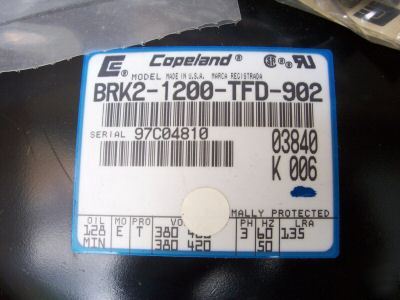

MODEL NUMBER: BRK2-1200-TFD-902
SOURCE: Surplus to the ongoing operations of a large pharmaceutical company.
SELLS ELSEWHERE FOR APPROX.: $1,800
Thank you for considering our products!
