8/6 vector extrude hone, 8" cylinder abrasive flow hone

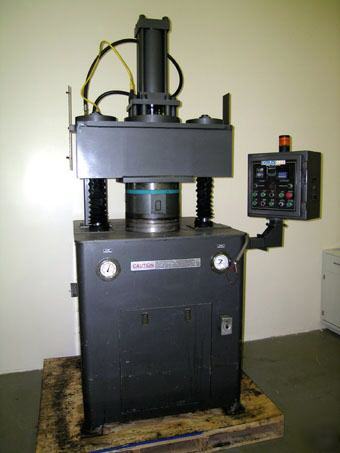

Liberty Machinery Company-You are looking at a No. 8/6 Vector, Extrude Hone, 8" Media Cyl Diameter, 1500 PSI, Media Chiller-Serial No. R91-0673Condition - UsedNew - 1991-SPECIFICATION:Media Cylinder Diameter 8"
Media Cylinder Capacity 628.3 cu.in.
Hydraulic Clamping Force 29.4 Ton
Max. Opening Between Tooling Plates 10"
Compressed Air Required 58 PSI
Media Extrusion Pressure 197 - 844 PSI
Media Delivery Rate 0 - 2,053 cu.in./min.
Approximate Overall Dimensions - Closed 41" L x 51" W x 106" H
Approximate Weight 5,000 Lbs. -EQUIPPED WITH:Allen Bradley Programmble Logic Controller (PLC). Media Chiller Package. 20
HP Hydraulic Power Pack Unit, 230/460/3/60 Cycle. Operating Pressure 350-1500
psi.,5 gpm. Push Button Control Panel. Media Displacement Digital Counter and
Cycle Timer Counter. Books and Documentation.
