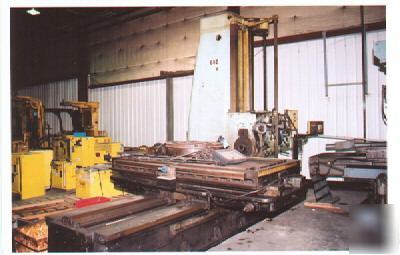

5” #350-T GIDDINGS & LEWIS Table type Horizontal Boring Mill
Max. distance top of table to spindle center 60”
Min, distance top of table to spindle center -4 ¾”
Center distance between spindles 8.75”
Max. distance top of table to spindle center -4”
Table working surface 48” x 86”
2-axes Tri-onics digital readouts
2”Dia. aux. High speed Spindle
15 H.P. 3/60/220-440 Volt Motor and Controls
Condition: Very Good (all ways have been remachined)
Approximate weight: 35,000 lbs.
Floor space required: 232”L x 155”W x 129” High
