30†vibratory feeder bowl with dual feed and robohand

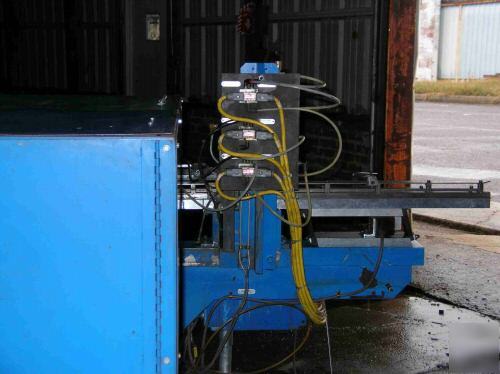

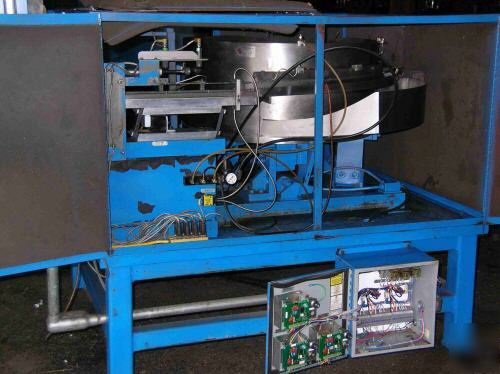

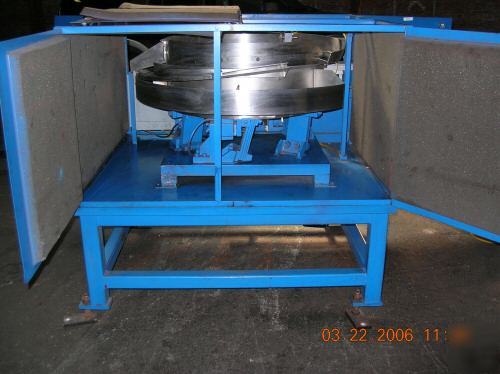

30†Vibratory Feeder Bowl And Sound Proof Enclosure with Dual Feed Arm and RoboHand Indexer
This 30†Vibratory Feeder Bowl with Vibratory Storage Vibratory Inline Feeder and Sound Enclosure was custom built, for Door Knob Assembly Plant
Feeder Bowls are Stainless Mid-West Feeder, Inc. Built in 1996
It was tooled for use in the manufacture of door knob locking blades.
Plant was closed in 2002 when all operations moved to Mexico.
This bowl is in Used Excellent CONDITION.
Could easily be retooled to meet your needs if part size is comparable.
A complete As Built Specification Book is available with purchase of the bowl.
-Electrical Power Supplied: 115 VAC, 60 Hertz
- (3) Controllers: Rodix vibratory Drive Units with CW drive base, 6 post, 2 coil, 120V
-Banner Mini-Beam Sensor for piecepart (in-track) level sensing

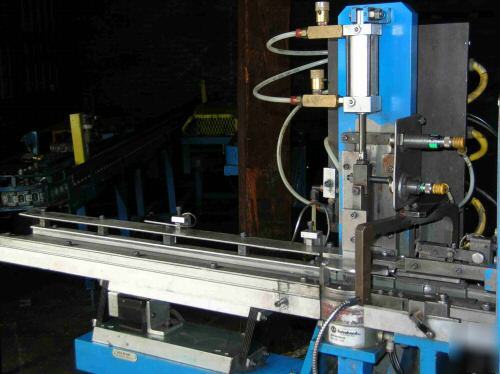

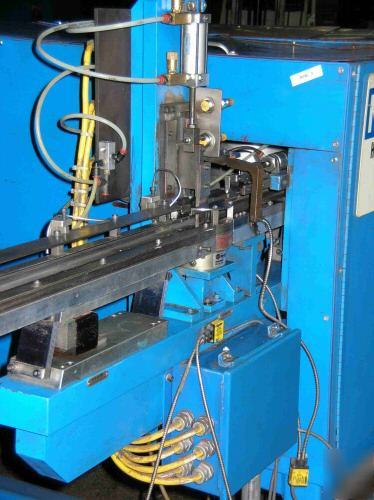

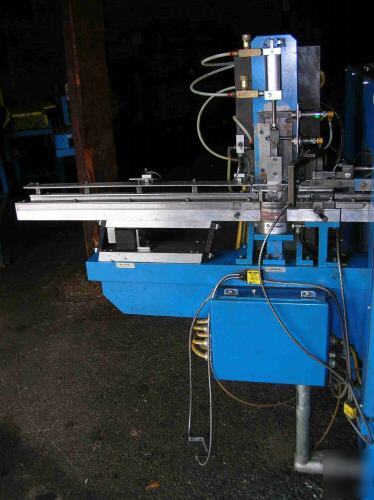

RoboHand RR-28-180 Pneumatic Part Indexer w/placement cylinder
(Turk) Part in place Proximity sensor.
Used but in Good working condition when removed from Plant
Guaranteed to be in good working condition.
- mounted on a 1 1/2†thick steel base plate
-Sound Enclosure measures 58â€W x 72â€L x 59â€H (from floor) or 37â€H (enclosure only).
-Sound Proofing Insulation is in excellent condition.
-Minimum sound level was not to exceed 80dba at 1 meter.
Part surface area: 4.1 in. sq.
Total Weight (bowl and enclosure): Approx. 3500 lbs.
