Walter 31" power tilting rotary table. nice
WALTER 31" POWER TILTING ROTARY TABLE. NICE

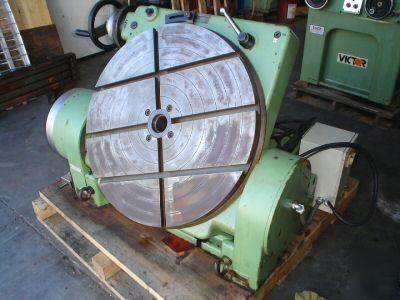

Walter 31" Power Tilting Rotary Table
The work holding table can be adjusted infinetely from horizontal to vertical position with a push of a button. Tilting accuracy reading with vernier 1deg. This table is in excellent condition and is the -A- type (precision) table. This table was purchased new for $60,000.
Full Specifications Below Pictures
* Table Diameter................................ 31.5"
* Table overall height............................ 19.69"
* Tilting range....................................... 90 deg
* Centerline from base (in vertical position)........................ 17.72"
* Base overall length........................................ 32.4"
* T-Slot width..................................... .787"
* Worm gear ratio............................... 1:120
* Table weight..................................... 1,875 lbs
* Class of accuracy ............................... 10" (+/-5")
