Videoscope - 6.5 foot (2000MM) cable


____________________________________________________________________________________
____________________________________________________________________________________Videoscope - 6.5 Foot (2000mm) Cable

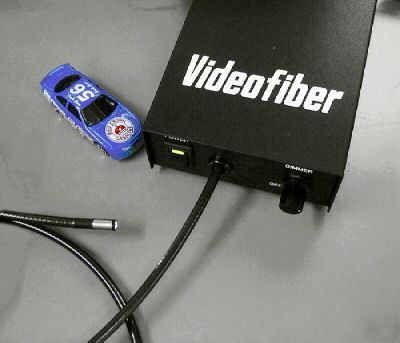

Industrial VideoScope VF-N73K (NTSC) or VF-P73K (PAL) from Coden Japan
The Coden Video Scope can be connected to a TV, camcorder, recorder, or any other output device with a standard Video-Input
After turning the power switch on, the integrated light source of the Video Scope will illuminate any opening/hole that needs to be inspected.
The ultra-small lens (only 0.06” in diameter) is on the end of the fiber optics within an hard spiral tube/stainless pipe. It magnifies anything at 500% on a 14-inch monitor! The insertion cable is only 0.23” in diameter and 79” long.
The lens and 15 tiny LED light guides are integrated directly into the cable itself, making it compact, water/oil proof, and providing an even illumination.
LED - what are the advantages?
Consumes low power compared to halogen and yellow lights.
Light strength never diminishes during its lifetime!
Nearly no heat-expansion (cold-light)
High shock and vibration proof
Small size, but more powerful light!
Only one hand needed for operation.
Expand the image larger than on a typical scope.
Super thin cable: only 0.23 inch (6 mm) diameter
high quality and real industrial grade with stainless steel spiral protection.
The (nearly) infinite range of applications:
Inspection of machines, Going inside engines, Examining circuit boards in detail, Drill holes, Water pipes Automobile/airplane parts, Soldering , Model-making Boreholes, Chimneys, HVAC
Finding insect/animal infestations
Electricians, engineers, and repairmen can easily check behind any wall or tiling with only a 0.23 inch bore! Because of the included mirrors, there’s almost nowhere you can’t see.
____________________________________________________________________________________
Videoscope VF-N73K (NTSC) or VF-P73K (PAL) (please specify)
(we deliver the long focus version VF-N73K (NTSC) as default if we have no other notice)
120 degree reflector for better viewing angles
____________________________________________________________________________________
Model Name: VF-N73K (NTSC) or VF-P73K (PAL)
Maxium bending radius: 3.1” (80mm)
Focus area: 1.18”~infinity (30mm~infinity)
View angle: 50 (+/- 2) degrees
Reflector view angle: 120 degrees (included!)
Magnification: 500% on 14” monitor (at 1.18” distance)
Cable tip diameter: 0.23” (6mm)
Temperature resistance: -23~140° F
Main materials: Steel, optical fibers
Note: This model takes approximately four weeks to be custom made and delivered.
ACCESSORIES: extra mirrors amd monitor available in our "Accessories" category.
____________________________________________________________________________________
The article will be send directly from the manufacturer in Japan.
( for further informations please click here )
With the full manufacturer warranty!
