Tektronix cg 5011 program calibration generator w/opt

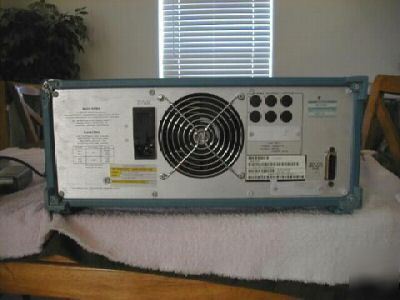

SPECS: Compartments: 6 Compatibility: TM500 or TM5000 series plug-ins Forced air cooling IEEE-488 (GPIB) interface. It has option 15. The option is the GPIB on back.

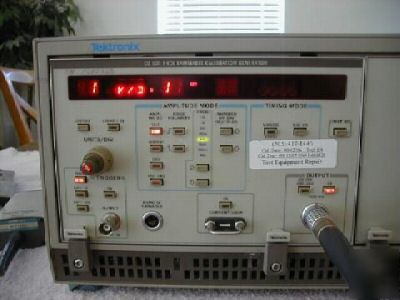

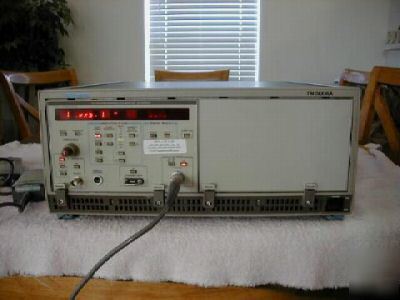

The CG5011 is used either manually, or as a part of an automatic calibration system to calibrate a wide range of oscilloscope parameters. The unit occupies three slots in this TM5006 mainframe, and is programmable by GPIB. The CG 5011 complies with IEEE Standard 488.1-1987, and with Tektronix Standard Codes and Formats. Frequency: 40 µV to 80 mV: 10 Hz to 10 kHz. 100 mV to 10 V: +DC or: -DC, 10 Hz to 100 kHz. 12 V to 200 V: +DC or -DC, 10 Hz to 10 kHz.
Features: ***Vertical Gain ***Horizontal Timing and Gain ***Vertical Bandwidth/Pulse Response Characteristics ***Probe Accuracy and Compensation ***Current-Probe Accuracy ***Calibrator-Output Accuracy ***Next-Cal-Date Tracking ***Option 01 adds a temperature compensated, 5 MHz crystal oscillator for a high accuracy time base.
SOLD IN USA ONLY! SOLD IN USA ONLY! SOLD IN USA ONLY!
Reasonable offers are well come! REASONABLE ONES!
