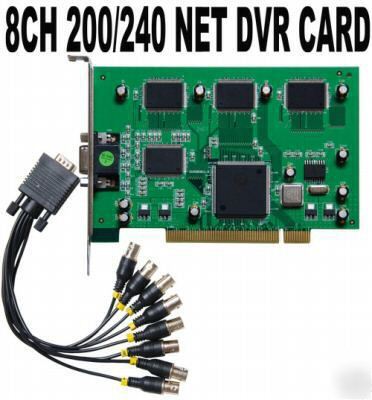

8CH 200/240FPS net dvr card authorized software h.264
This is a brand new real-time DVR system PC Based, with 9 bit image quality using the PHILIPS SAA7130
chipset, this DVR card provide the hi-performance digital video recording. And give you higher picture quality
and much more smooth video via the Internet. Ideal for home and business surveillance applications.
Remote viewing /recording (backup) / playback / PTZ control by IE
very easy to setup with friendly use software
Image quality: 9-bits ADCs super high quality
Image compression: H.264 optimized (high recording definition, especially when there is intense movement)
Video total frame rate: 200 fps in PAL, 240 fps in NTSC.
Display resolution: 640 X 480, 352 X 288, 320 X 240
Recording resolution: 640X 480, 352 X 288, 320 X 240
Compression ratio: 8-150M/H/C
Network protocol: TCP/ UDP
Operating System: Windows2000 / XP
* 8 channel real time monitoring.
* Each channel Image color can be adjusted independently by software.
* Support insert 2-4 cards in the same PC at most, form 16-32 channel real time monitoring, and can also support mix inserting Ether9404 & ETHER9808, to form 12 channel monitoring.
* Multi screen monitoring, 1,4,9,16,25, 36 split Screen available, support rotate display.
* Support multi-hard disks cycle recording.
* Recording both flow trends yard and fix yard are available.
* Intelligent searching for historical DVR files, 4 ch/ 9 ch/ 16 Ch playback.
* Multi-user's authority management setup, support to set up user's operating authority.
* Support motion detection trigger video recording, sending E-mail (monitoring pictures in the enclosure), sending alarm by phone, and by sound.
* Setting up motion detection area discretionarily, the sensitivity is adjustable.
* Through IE realize such perfect network management functions as remote spot monitoring, remote historical playback, remote spot video recording, remote historical video recording, etc.
* Support Intranet IP to remote monitoring.
* Support one IE remote monitors several DVR of different IP.
* Support one IE remote monitors several different DVR within the same IP.
* Support the watermark of the characters and time, the particular format of video files prevent being edited, the security is high.
* The video file supports electron enlarge, taking pictures and instant print and exe format back up.
* Support local and remote PTZ control.
* High speed network transmission.
* Superior image clarity ,built with 9-bit ADCs
* Easy to installation and use GUI (Graphical User Interface).
An IBM compatible PC is recommended
Intel's CPU is recommended
Motherboard on Intel chipset is recommended
At least 128M of RAM (256M required for 16 cameras and above)
At least 32M of RAM for display adapter. ATI Radeon 7000 DDR and above, Nvidia Geforce series are recommended (TNT2 Mode 64 supports only 4 or less screen mode)
Windows 2000 or Windows XP ( NTFS file system is recommended, Windows 95, 98 do not support)
Windows Directx9.0 is required
Latest Display adapter driver
