12"X24"okamoto "saddle-type" surface grinder #24768

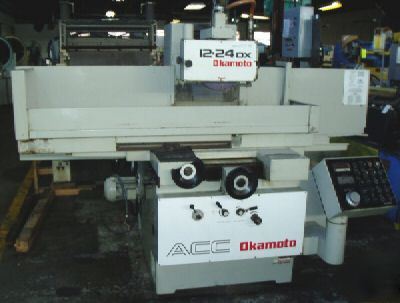

12" X 24" OKAMOTO "SADDLE-TYPE" HYDRAULIC-FEED
FULLY AUTOMATIC HORIZONTAL-SPINDLE SURFACE GRINDER
New 1995, Serial No. 64168, Model ACC12-24DX,
Overhead Grinding Wheel Dresser
Table Working Surface, W x L........... 12" x 24"
Grinding Width Capacity, Maximum....... 12"
Grinding Length Capacity, Maximum...... 24"
Height Under 12" Grinding Wheel........ 13.7"
Table Load Capacity.................... 925 LBS
Grinding Wheel Diameter, Standard...... 12"
Grinding Wheel Width, Standard......... 1.5"
Grinding Wheel Width, Maximum.......... 2"
Grinding Wheel Hole Diameter........... 5"
Grinding Speed, Maximum................ 6500 SFPM
Table Longitudinal Feeds, Range........ 1 TO 82 FPM
Column Cross In-Feeds, Range........... .002 TO 0.8 IPM
Spindle Vertical Feeds, Range.......... .0005 TO .0015 IPM
Grinding Wheel Spindle Motor........... 5 HP
Floor Space Required, L X D............ 8'11" X 6'3"
Overall Height......................... 5'10"
Weight, Approximately.................. 5280 LBS
PRICE: F.O.B. OUR WAREHOUSE........... $24,500.00
All machines/equipment subject to prior sale.
