10000 lb aronson-koike welding positioner #24845

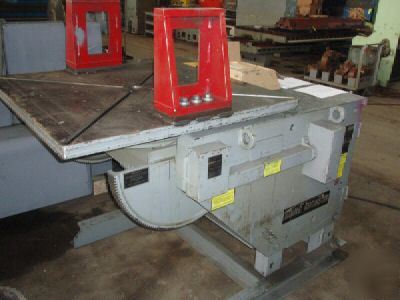

10000 LB ARONSON-KOIKE WELDING POSITIONER
New 1997, Serial No 97523, Model HD100CS
360-Degree Constant-Speed Power Rotation
48" x 48" T-Slotted Square Table
Manual Adjustable Table Elevation
Table Dimensions (Overall) W x L........... 48" x 48"
Table Weight at 12" Eccentricity........... 10000 LBS
Table Weight at 18" Eccentricity........... 7100 LBS
Table Weight at 24" Eccentricity........... 6300 LBS
Table Weight at 30" Eccentricity........... 5300 LBS
Table Weight at 36" Eccentricity........... 4600 LBS
Table Weight at 42" Eccentricity........... 4000 LBS
Table Weight at 48" Eccentricity........... 3600 LBS
Table Weight at 54" Eccentricity........... 3200 LBS
Table Weight at 60" Eccentricity........... 3000 LBS
Table Height, Minimum...................... 44.5"
Table Height, Maximum...................... 74.5"
Table Vertical Height Adjustment........... 30"
Table Rotation, Degrees.................... 360-DEGREES
Table Tilt, Degrees........................ 135-DEGREES
Rotation Torque, Inch Pounds............... 120,000 LBS
Tilt Torque, Inch Pounds................... 205,000 LBS
Table Rotation Speed, Constant............. 2.0 RPM
Rotation Motor, Horsepower................. 5 HP
Tilt Motot, Horsepower..................... 3 HP
Overall Dimensions, W x D.................. 4'5" x 6'4"
PRICE: F.O.B. OUR WAREHOUSE................ $24,500.00
All machines/equipment subject to prior sale.
