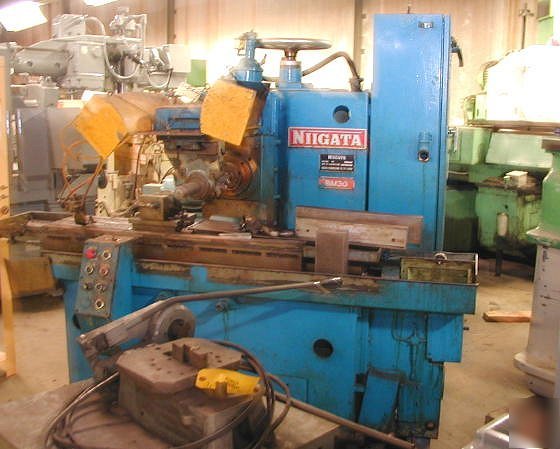

NIIGATA BM30, BED TYPE, HORIZONTAL PRODUCTION MILL
Niigata Bed Type, Horizontal Production Mill
Table Size: 11 3/4" X 47 1/4"
Vertical Adj. of Spindle Carrier: 13 3/8"
Max. Dist. Spindle Center to Table Top: 15 3/4"
Cross Quill Adjustment: 4 11/32"
Spindle Speeds, Type A: 50 - 500 RPM
Table Feeds, Type B: 2 3/8 - 23 5/8 IPM
Spindle Nose Taper: No. 50
Machine Weight, Approx.: 5,720 Lbs.
(5) Standard Automatic Table Cycles
Automatic Backlash Eliminator
(1) Set of Speed & Feed Gears
10 HP Spindle Motor 220/440/3/60
All Items Subject to Prior Sale
Be Sure to Verify Specs & Condition Prior to Purchasing
