> New corken 521 coro-vane stationary. sliding vane pump,
New corken 521 coro-vane stationary. sliding vane pump,

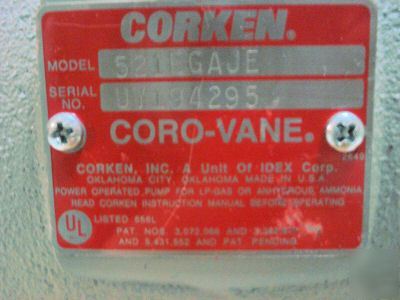

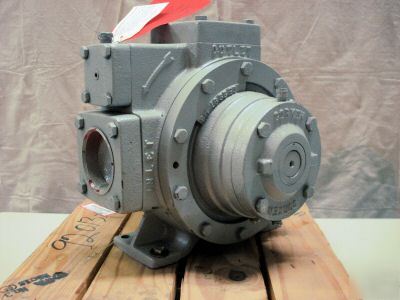

CORKEN Model 521EGAJE Coro-Vane Stationary Pump, NEW
Type: Rotary Positive Displacement Pump known as "Sliding Vane Pump",
ability to compensate for wear and operate at a lower noise level.

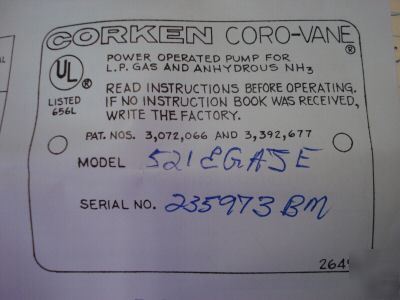

New never used , (2) are available, Excess stock. S/N 235973BM,

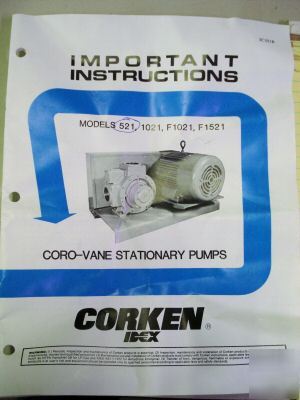

Note: From manual -Pump should not be run with V Belt Drive greater than 20 HP
and a Relief Valve is built in as part of the Pump, adjustable under pressure. Even
with this internal safety valve an external bypass valve must be installed.

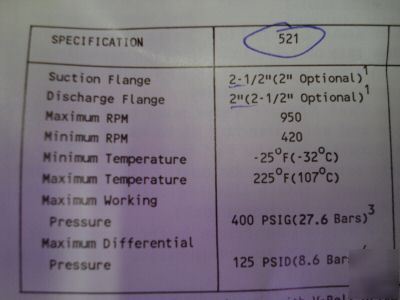

*Suction Flange: 2-1/2 " (2" optional), * Discharge Flange: 2" (2-1/2" optional),
Max rpm: 950, Min rpm 420, Min Temp: -25 deg F (-32 deg C),
Max Temp: 225 deg F (107 deg C), Max Work Pressure: 400 psig ( 27.6 bars)3,
Max Differential Pressure: 125 psid (8.6 bars)4.
