Keithley 2304 high speed programmable dc power supply
Keithley 2304 HIGH SPEED PROGRAMMABLE DC POWER SUPPLY
NIST Traceable Calibration/Certification 30 Day Warranty
Please review item Description & Condition
MANUFACTURER'S Specifications:
Model 2304 QuickStart User's Guide Rev. A...click here
The 2304 High-Speed Power Supply provides both voltage control and power consumption monitoring for automated testing of portable, battery-operated devices. It is optimized for testing battery-operated, wireless communication devices such as cellular phones that undergo substantial load changes for very short time intervals. The 2304 exhibits outstanding voltage stability during pulse load changes and can simultaneously measure load currents, even if they are short pulses. In addition, it can sink current and, thus, take on the characteristics of a discharged, rechargeable battery for testing chargers and charger-control circuitry. The 2304 is rated for up to 20 VDC at 5A. The 2304 is programmable via an IEEE-488.2 interface
MAXIMUM CURRENT - 5 ADC Max
MAXIMUM VOLTAGE 20 VDC Max
MAXIMUM WATTAGE - 100 W Max
NUMBER OF OUTPUTS Single Output
Optimized for battery-powered device testing
Ultra-fast transient response to load changes
100nA DC current sensitivity
Item powers up and works... comes from a working large-scale industrial lab environment.
Calibrated to meet manufacturers specifications

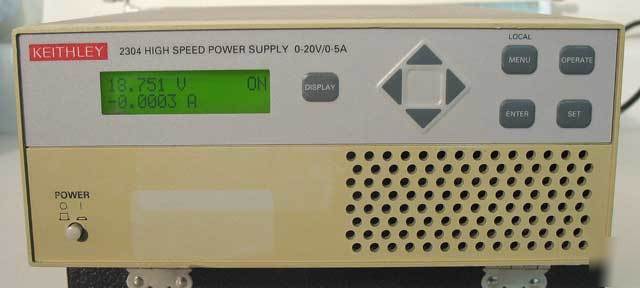

Cosmetically good condition. A rectangular discoloration on front panel (see image) where a sticker was removed. A couple of small scratches here and there on the cabinet.
above linked QuickStart User's Guide on a CD-ROM by request
no other accessories, manuals, modules, probes, orig. packing, etc.
Contact via E-mail for more information.
Keithley 2304 HIGH SPEED PROGRAMMABLE DC POWER SUPPLY
NIST Traceable Calibration/Certification 30 Day Warranty
Image Gallery (click thumbnail for larger view)
Item is sold without accessories probes, power cord, software, carrying case, etc.) unless specifically mentioned in the above description.
No implied or expressed warranty unless otherwise stated.
Item descriptions are as accurate as possible but may contain errors.
Photo images are of the actual item. What you see is what you get.
