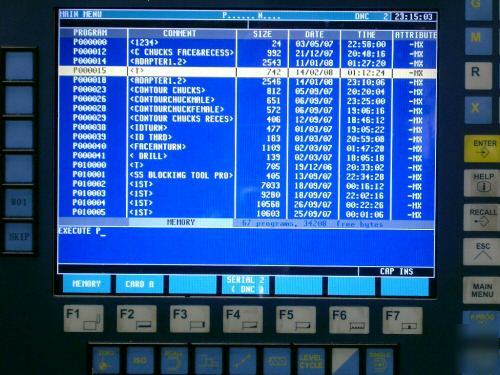

> Ganesh gt-2050 precision cnc plus lathe, fagor 8040-t

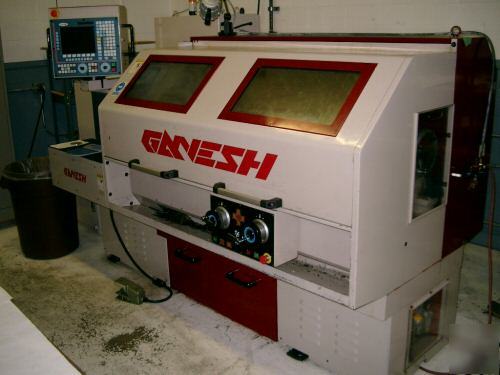

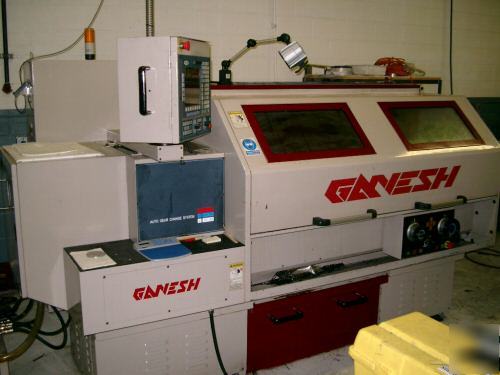

Ganesh gt-2050 precision cnc plus lathe, fagor 8040-t
New $55,000.00 , 10" Chuck , 8 Station Turret
Very Low Hours, Machine is Under Power
For more information email us or call (***) 347-9467 Ext 101
Meehanite Castings, fine grain and high density cast iron using the superior Meehanite process yields superior vibration dampening and improved surface finish and tool life, as well as greater wear resistance on the ground way surfaces of this heavy-duty CNC lathe.
10-HP heavy-duty spindle motor for added metal removal capability
Infinitely variable spindle speeds from 35 - 2500 rpm in 3-gear ranges for high torque
Automatic gear-changes between the 3-gear ranges generate constant torque for higher efficiency
Alloy Steel Hardened & Precision Ground Gears provide for smooth power transmission
Spindle with 2-1/8†bore is supported by three over sized precision bearings
Hardened and ground D1-6 Camlock spindle nose for quick workholding changeover
Hardened & Precision Ground Double-Vee/Double-Flat Ways for high rigidity
Turcite-B anti-friction coating on saddle and cross slide for improved accuracy & wear

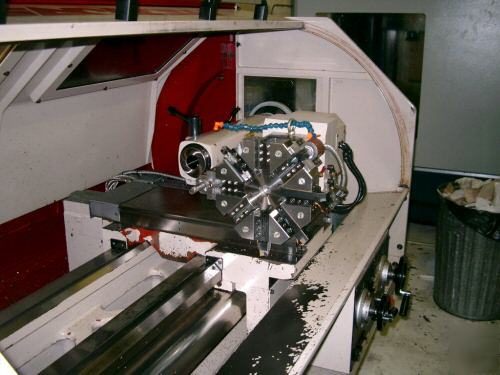

Automatic servo driven 8-position programmable turret
Inch/Metric threading, left or right hand threading, single or multiple-start threading

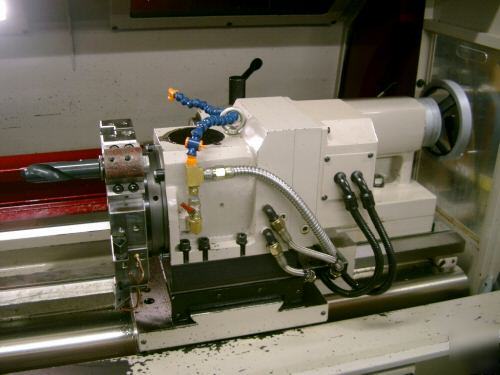

Air-Assisted “floating tailstock†for ease in positioning

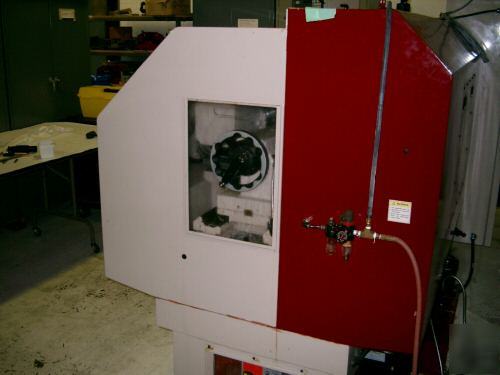

Fully enclosed roll top †chip guard for easy access and added operator safety
Built in high-capacity coolant system and large Fluorescent worklight included
Automatic Metered Lubrication System for ballscrews and ways
Inspection Report on accuracy to CNS 94 and B7001 standards included
Instruction Manual, Tools and Tool Box with hand tools and lube gun included
Sliding operator panel travels with the longitudinal slide for operator convenience

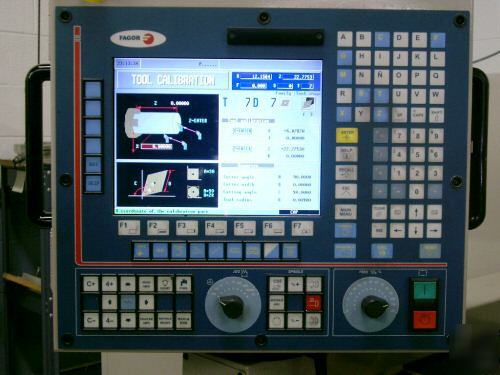

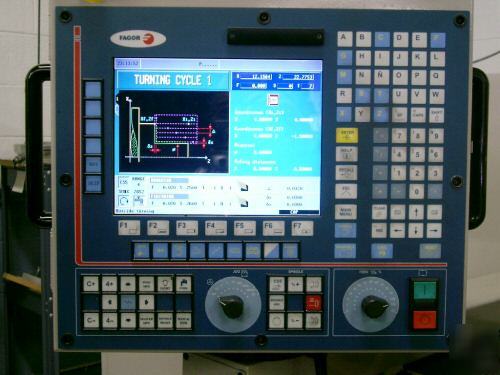

X & Z MPG handwheels and control pushbuttons are located on the traveling operator panel
Alarm lamp signals staff of machine operating condition

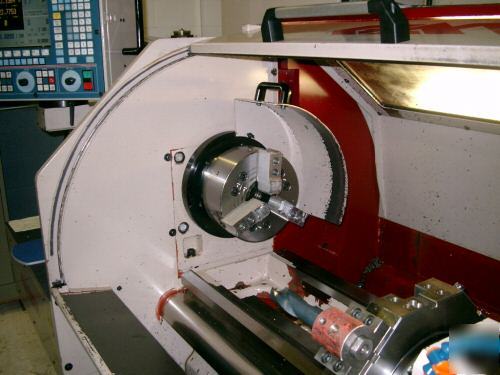

Chuck guard with Micro-Switch provided for enhanced operator safety
Fluorescent worklight provided to illuminate work area enclosure
Halogen spot worklight is provided to illuminate areas requiring detailed lighting
Convenient chip clean-out access panel in rear of machine
Roll-in / roll-out coolant tank makes coolant management easier
The electrical control box and coolant system are equipped with electro-magnetic contactors and overload relay protection devices to prevent motors from burn out and to ensure safe operation.
The tailstock quill is oversized and equipped with a tang-drive and a drift-slot to make removing the centers and taper shank drills very easy.
Exclusively designed built-in leveling ledge to level machine low to ground
8-position – shot-pin position lock
Tool turret indexing speed – electric drive:
35 – 2500 RPM infinitely variable, in 3-gear ranges
Spindle speed gear ranges, automatically selected:
1= 15 – 300 rpm, 2= 50 – 850 rpm , 3= 140 - 2500
Spindle ID taper in spindle nose:
Spindle taper reduction sleeve provided:
Accuracy Grade C3 (H-P Laser Tested)
Quill tang drive and drift-slot for tailstock:
Tailstock body set-over adjustment:
Tailstock body is "air assisted" for ease in positioning:
Cross slide ballscrew diameter:
Accuracy Grade C3 (H-P Laser Tested)
